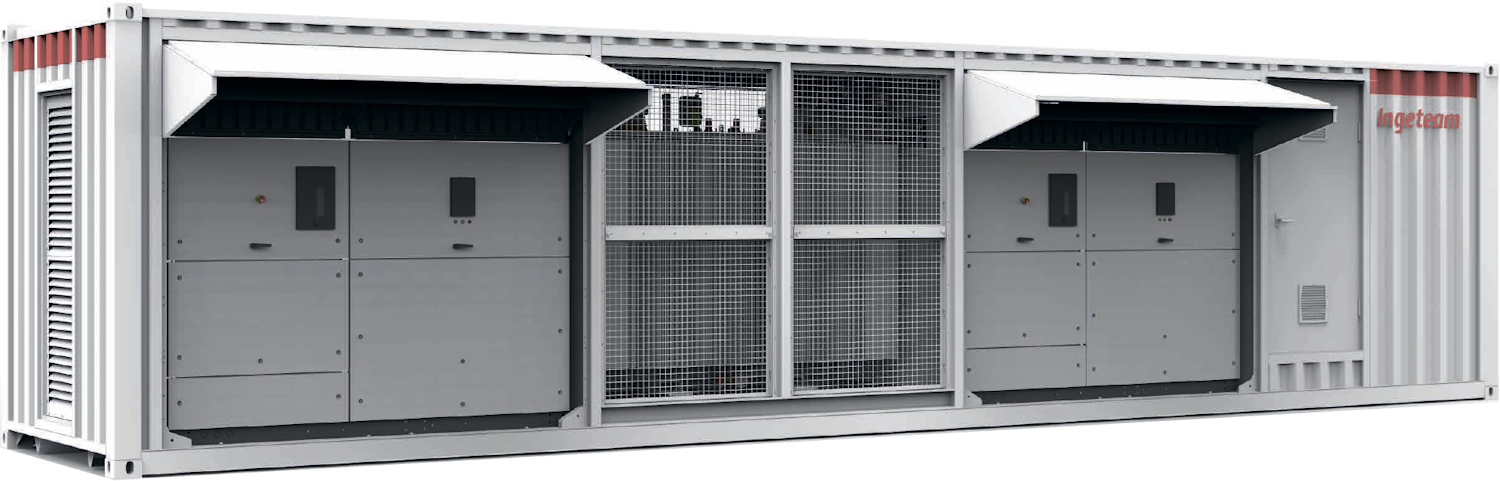

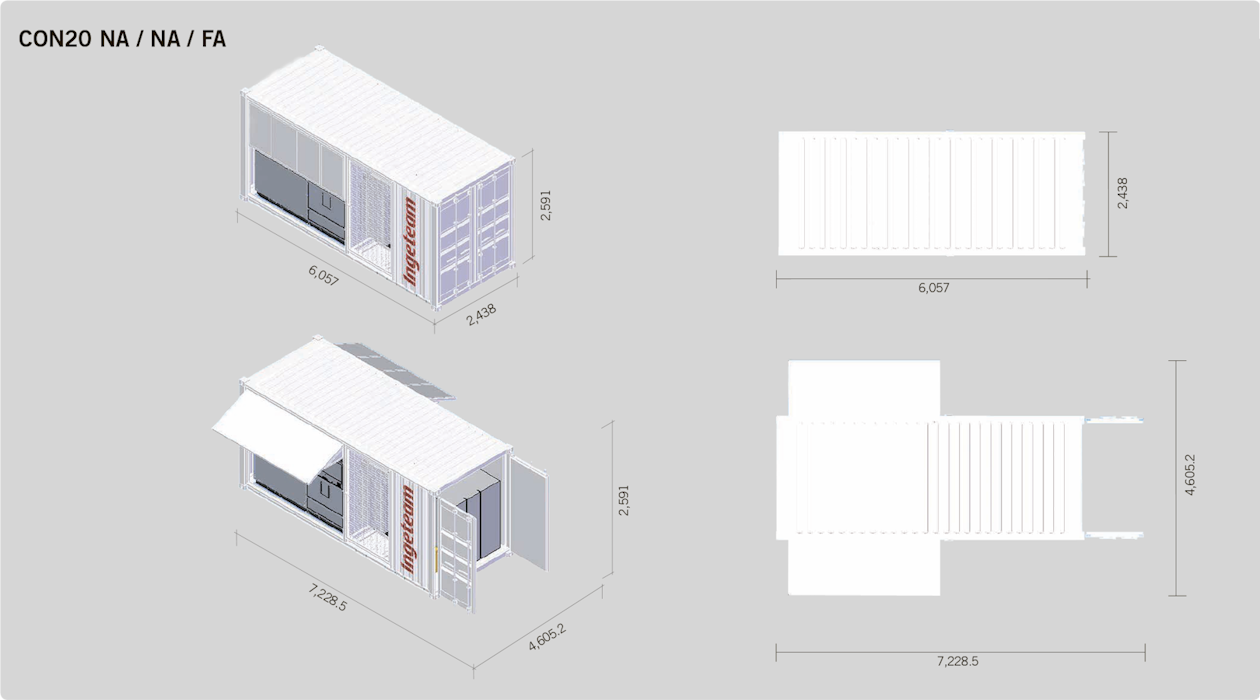

PowerStation CON20 and CON40 Outdoor

From 830 to 5000 kVA

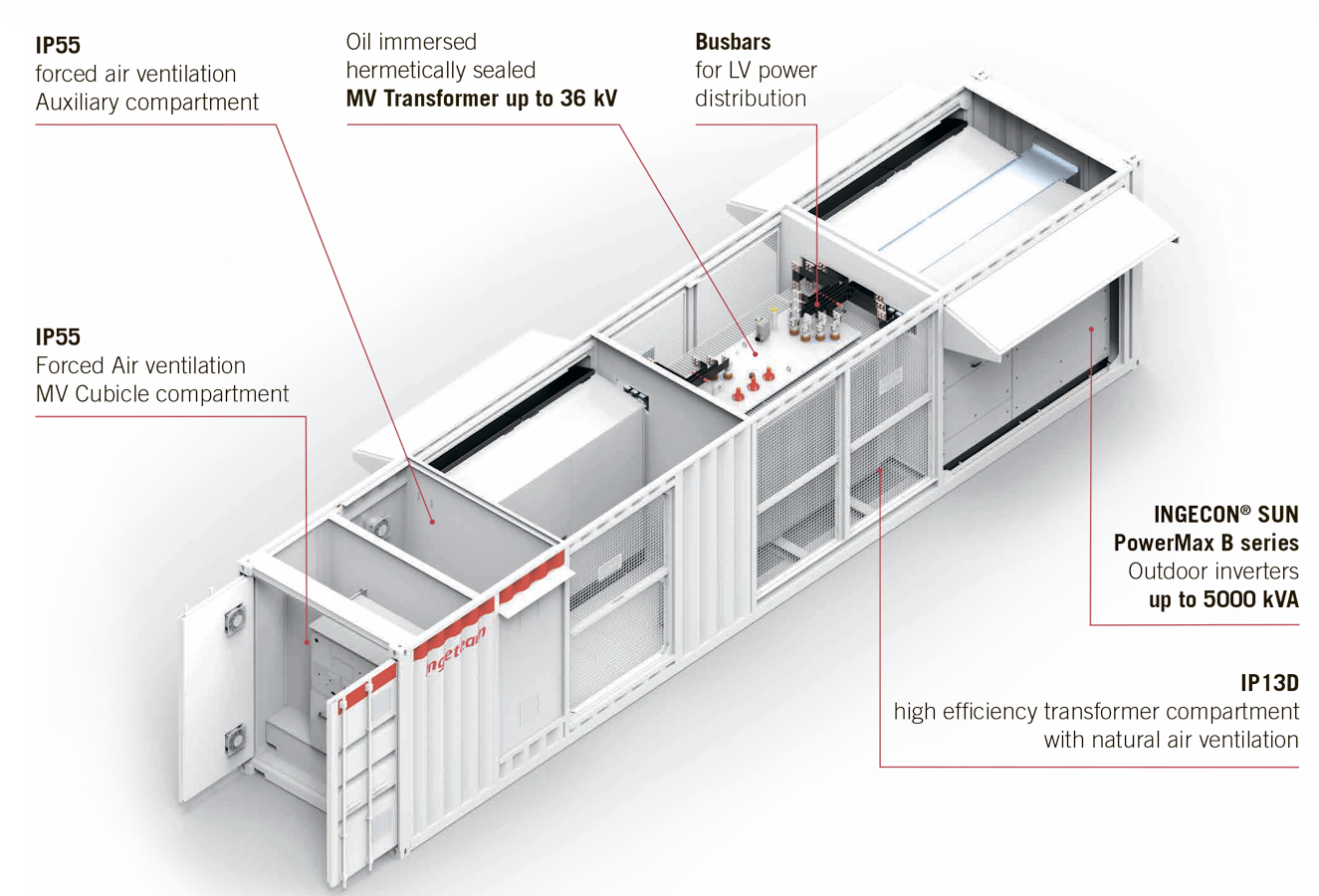

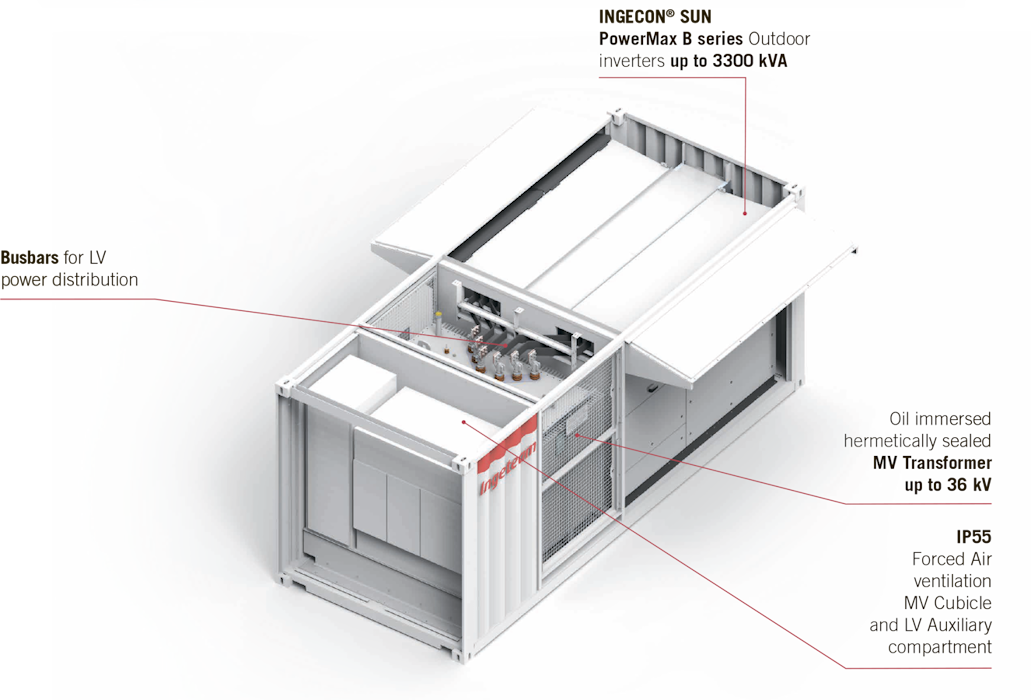

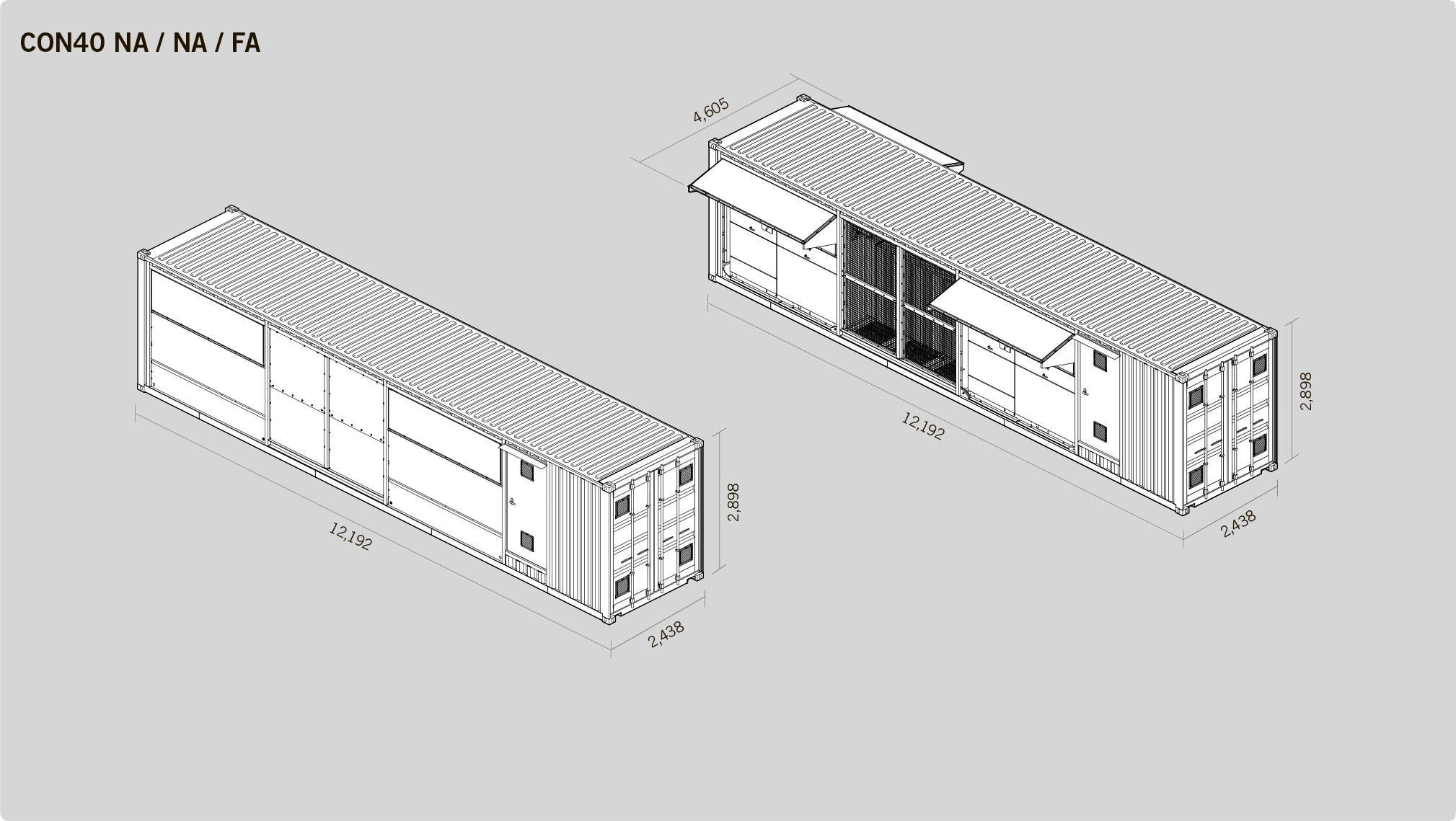

The complete turnkey solution, customized up to 5 MW. 20 or 40 ft. container with natural air cooling system for adverse environmental conditions. Thanks to its CSC approval for overseas shipment, the INGECON^® SUN PowerStation CON20 and CON40 can be marketed and installed everywhere in the world. They are fully equipped containers with five or four separate compartments, central inverters, Medium Voltage switchgear and LV / MV transformer (up to 5,000 kVA).

Robust and long-lasting design

The INGECON^® SUN PowerStation CON20 and CON40 are standard solutions specifically designed to maximise the compactness and costeffectiveness of the overall equipment. Thus, the transformer is naturally aircooled, as it is located in an outdoor compartment. The switchgear and communications panels are installed in an IP55 compartment to ensure their maximum protection. The sandwich panels of this compartment are made of galvanized painted steel, filled with a 40 mm layer of rigid fire proof polyurethane foam, ensuring perfect waterproofness over time and efficient thermal insulation.

Equipped with everything necessary

High efficiency inverters, auxiliary services switchgear, Medium Voltage cubicle and LV / MV transformer. Available with high-speed Ethernet / Fiber Optic communication infrastructure for Plug & Play connection to PV Plant Controller, monitoring and SCADA systems.

Complete accessibility

Thanks to its innovative design, all devices are readily accessible. The use of outdoor central inverters provides full access and the possibility of maintenance for all the equipment from the external part of the inverter station.

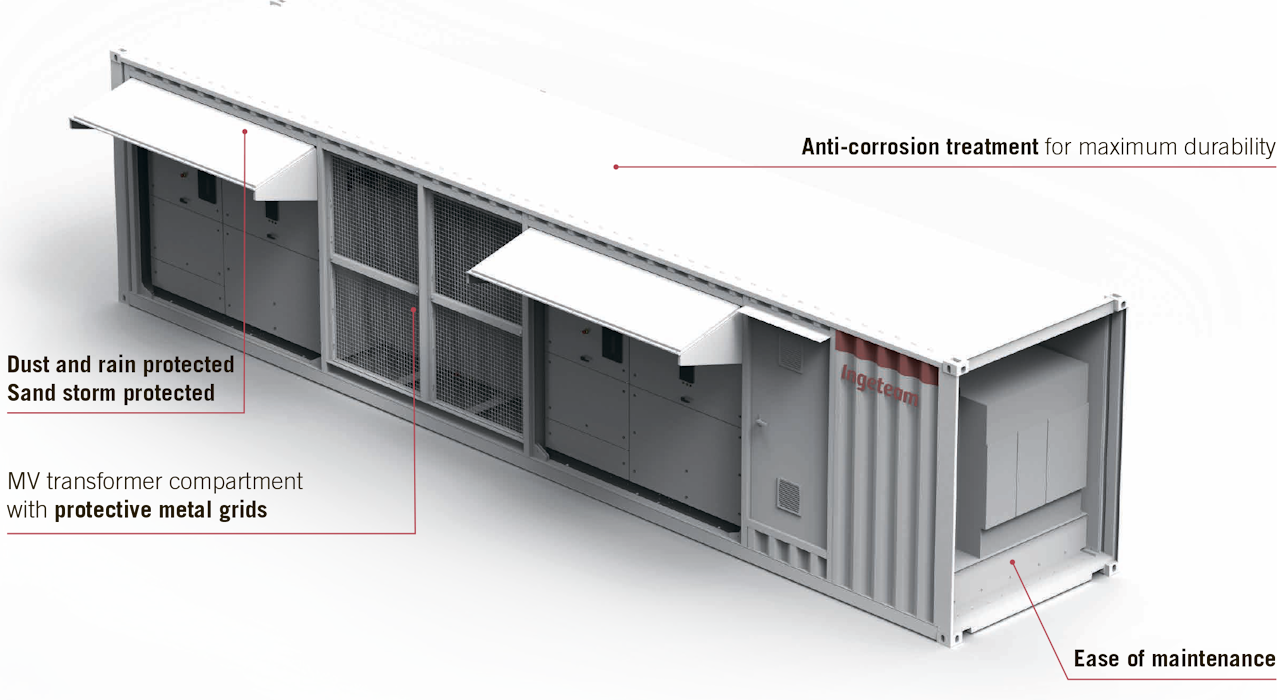

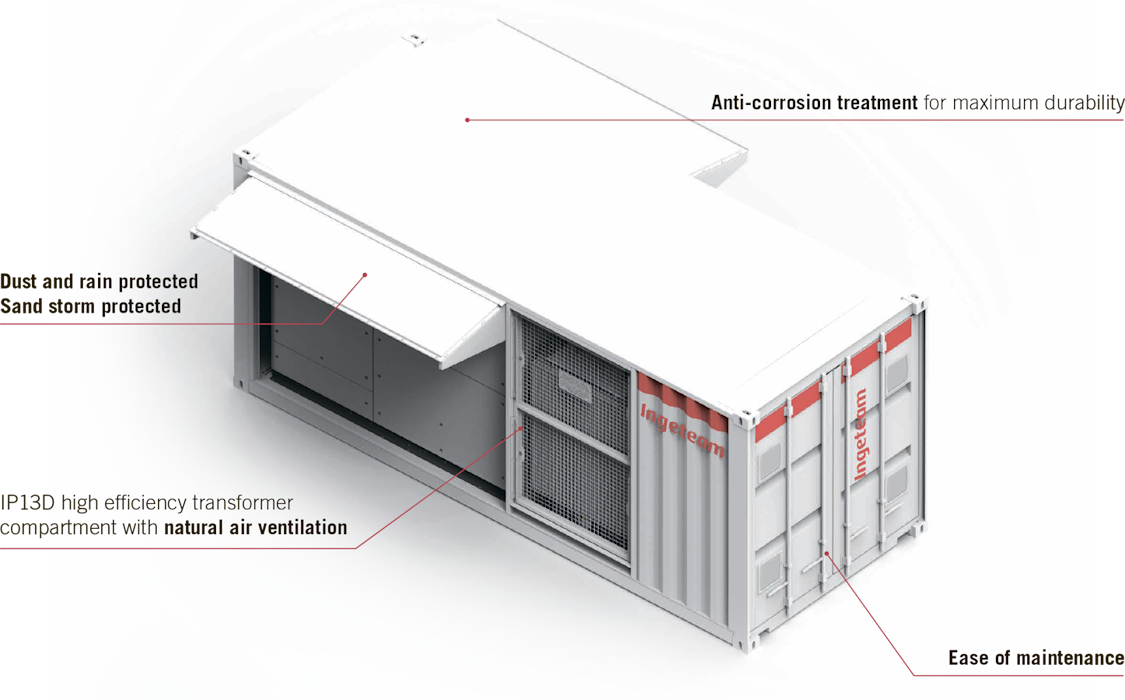

Ideal for adverse environments

The INGECON^® SUN PowerStation CON20 and CON40 are standard solutions able to withstand adverse environmental conditions without any loss of performance.

Maximum power density

This INGECON^® SUN PowerStation CON20 or CON40 feature two or three B Series PowerMax PV inverters, Ingeteam’s most compact PV inverter, as it provides more power per cubic foot. This makes it possible to achieve up to 3,300 kVA in only 20-feet and up to 5,000 kVA in only 40-feet inverter station.

Grid support

The INGECON^® SUN PowerMax PV inverters have been designed to comply with the most demanding international grid codes, contributing to the quality and stability of the electric system. Low voltage ride-through capability, reactive power deliverance and active power control are just some of their main features.

Output power up to 5,000 kVA.
Equipped with IP54 protection degree central inverters. ⁽¹⁾
Available with oil immersed hermetically sealed LV / MV transformer (up to 5,000 kVA / 36 kV) in IP21 compartment.
Available with IP55 compartment for MV Switchgear and LV equipment.
Rated power up to 50 °C ambient temperature. ⁽¹⁾
Protected against direct solar radiation.
CSC certification for container shipping.
Plug & Play solution.
Maximum reliability, higher safety and reduced maintenance.
Installation Altitude: 3,000 m above sea level. ⁽¹⁾

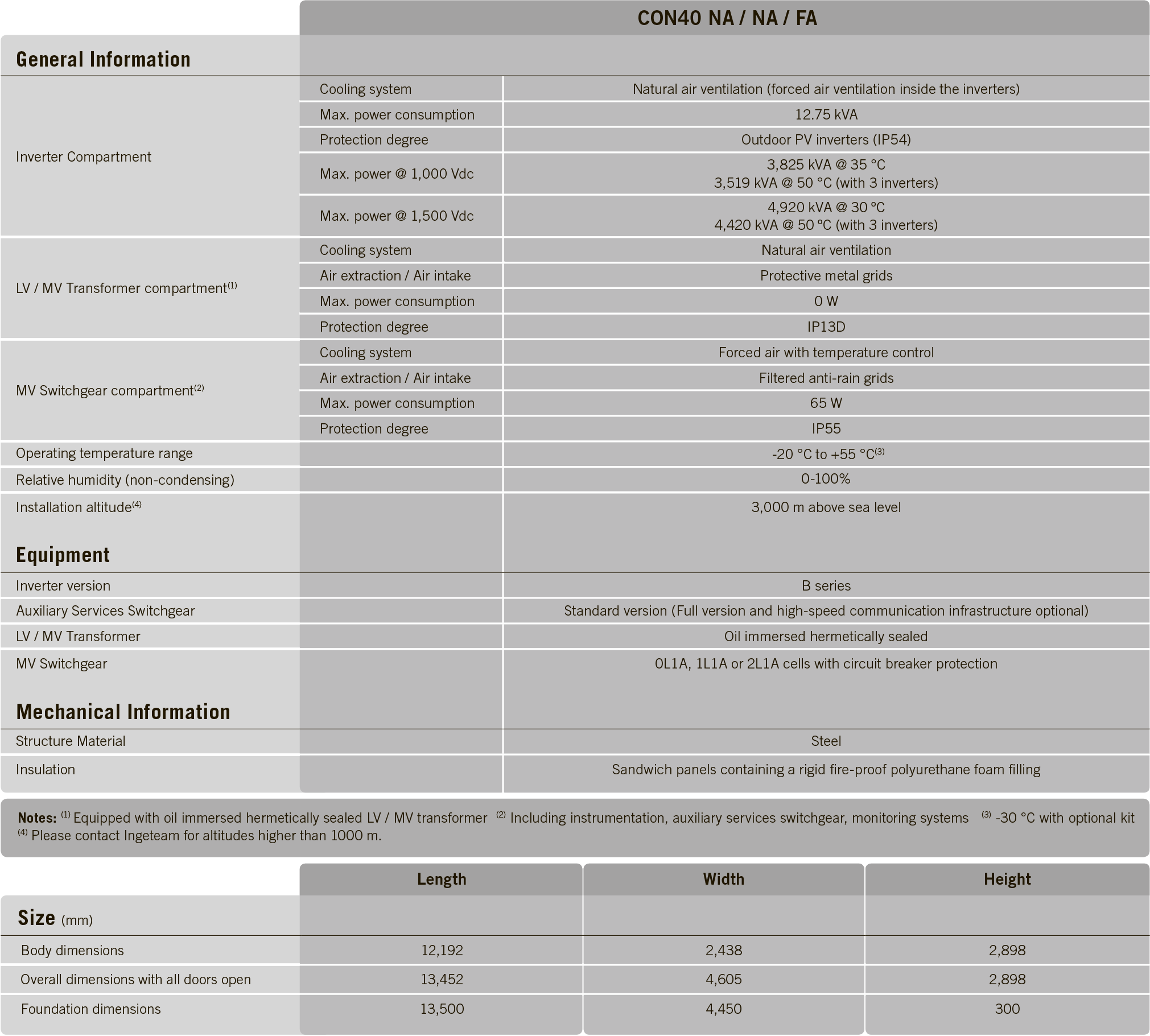

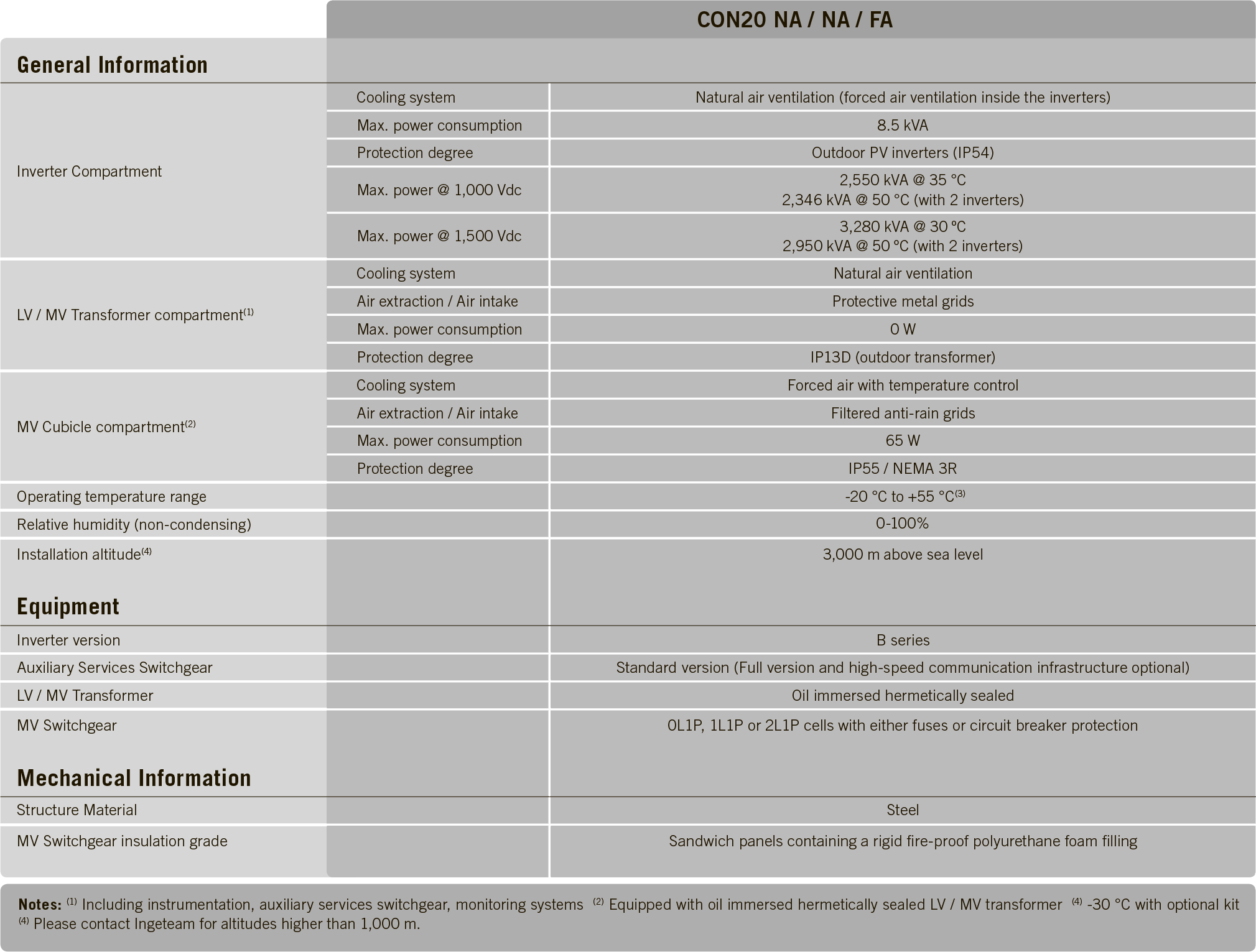

⁽¹⁾Refer to Technical Characteristics tables for further details.

Reverse polarity.
Output short-circuits and overloads.
DC fuses.
Motorized DC switches with door control.
AC thermal-magnetic breakers with door control.
DC and AC overvoltage suppressors.
Anti-islanding monitoring system with automatic disconnection.
Insulation monitoring system.
Automatic disconnection system in case of LV / MV transformer overheat.
Emergency disconnection button, accessible from outside.
DGPT2 protection relay included in the transformer.
MV protection with fuse or circuit breaker protections.

LV / MV transformer with reduced power losses
One, two or three INGECON^® SUN PowerMax B Series central PV inverters.
MV switchgear (1P-0L, 1P-1L, 1P-2L configuration).
Auxiliary power outlet.
Fully equipped auxiliary services panel.
Internal and emergency lighting systems.
Fire detection system with automatic disconnection (both DC and AC sides).
Medium Voltage safety kit.
First aid kit and safety signals.

In addition to the standard equipment, the INGECON^® SUN PowerStation can be supplied with the following options:

LV / LV transformer for the power supply to the auxiliary services panel.
Power losses reduction according to EU 548/2014.
Auxiliary services feeder kit.
UPS for auxiliary services.
High-speed Ethernet / Fiber Optic communication infrastructure for Plug & Play connection to Power Plant Controller and / or SCADA systems.
INGECON^® SUN StringControl 16 / 24 / 32 channels intelligent or passive string combiner boxes.
INGECON^® SUN SCADA supervision, control and data acquisition system.
INGECON^® EMS Plant Controller compliant with the most widely international Grid Codes.
Gateway for monitoring and control of the PV Plant by the Grid Operator using standard protocols (like IEC 61850, IEC 60870-5-101/104, DNP 3.0, etc.).
Sand trap kit.
Meteo station.
HV surge arresters.
Anti-rodent system.
Human intrusion detection system.
Internal and / or external lighting.
Oil retention tank (separately supplied).
Energy meter for auxiliary services and / or energy production.
Insulation Monitoring Relay for continuous monitoring of IT systems insulation.
Three-phase Capacitors with blocking inductances for Power Factor correction.
DC and AC cable terminals.
Reactive power regulation with no PV array power.
Ground connection of the PV array.
Painted with specific RAL upon request.
