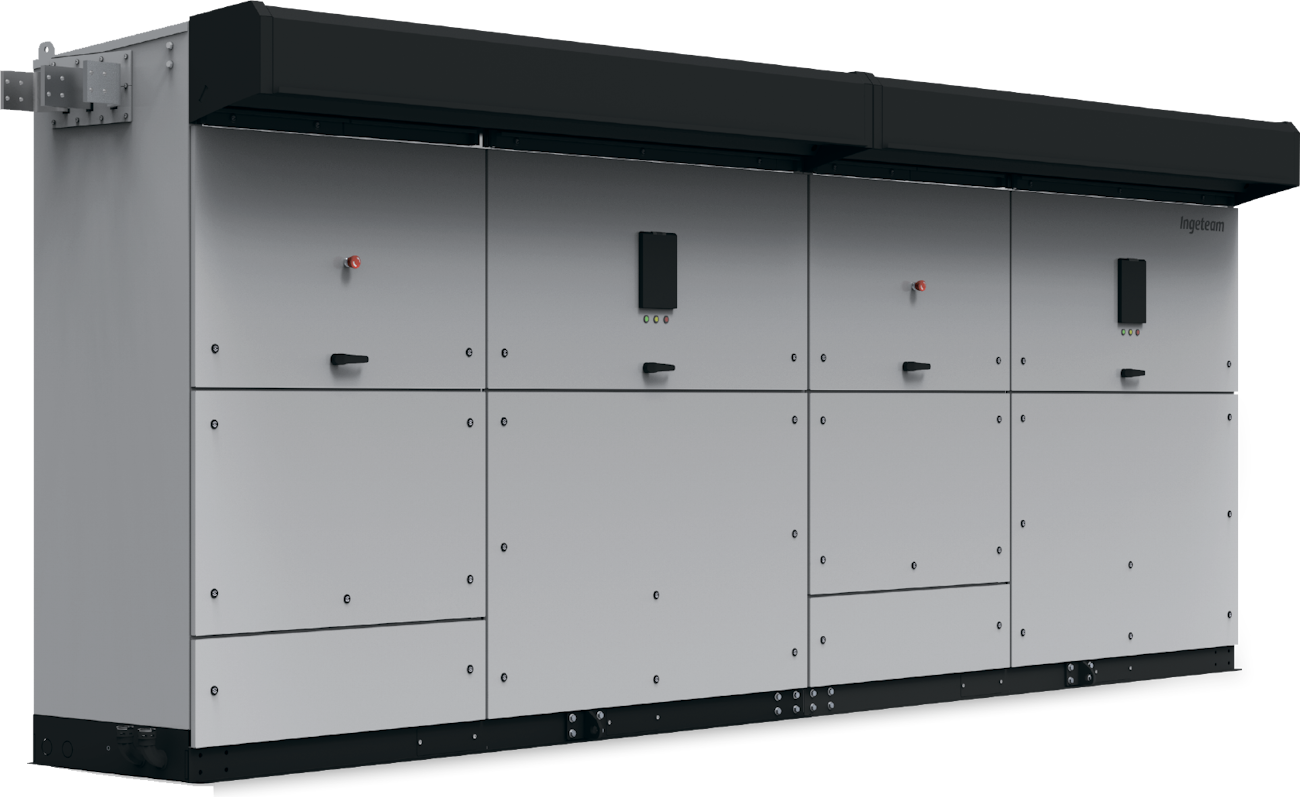

Ingecon Power Dual B Series 1,000 Vdc
Up to 2550 kVA at 1000 Vdc

Maximum performance, minimum space

Maximum power density

These PV central inverters feature more power per cubic foot. Thanks to the use of highquality components, this inverter series performs at the highest possible level.

Latest generation electronics

The B Series inverters integrate an innovative control unit that runs faster and performs a more efficient and sophisticated inverter control, as it uses a last-generation digital signal processor. Furthermore, the hardware of the control unit allows some more accurate measurements and very reliable protections. These inverters feature a low voltage ridethrough capability and also a lower power consumption thanks to a more efficient power supply electronic board.

Integrated AC connections

The output connections are integrated into the same cabinet, facilitating close-coupled connection with the MV transformer, as well as maintenance and repair work.

Maximum protection

These PV inverters can guarantee the maximum protection thanks to the their motorized DC switch to decouple the PV generator from the inverter. Moreover, they are also supplied with a motorized AC circuit breaker. Optionally, they can be supplied with DC fuses, grounding kit and input current monitoring.

Maximum efficiency values

Through the use of innovative electronic conversion topologies, efficiency values of up to 98.9% can be achieved.

Enhanced functionality

This new INGECON^® SUN Power range features a revamped, improved enclosure which, together with its innovative air cooling system, makes it possible to increase the ambient operating temperature.

Long-lasting design

These inverters have been designed to guarantee a long life expectancy. Stan-dard 5 year warranty, extendable for up to 25 years.

Grid support

The INGECON^® SUN Power B Series has been designed to comply with the grid connection requirements, contributing to the quality and stability of the electric system. These inverters therefore feature a low voltage ride-through capability, and can deliver reactive power and control the active power delivered to the grid. Moreover, they can operate in weak power grids with a low SCR.

Ease of maintenance

All the elements can be removed or replaced directly from the inverter’s front side, thanks to its new design.

Easy to operate

The INGECON^® SUN Power inver- ters feature an LCD screen for the simple and convenient monitoring of the inverter status and a range of internal variables. The display also includes a number of LEDs to show the inverter ope- rating status with warning lights to indicate any incidents. All this helps to simplify and facilitate maintenance tasks.

Monitoring and communication

Ethernet communications supplied as standard. The following applications are included at no extra cost: INGECON^® SUN Manager, INGECON^® SUN Monitor and its Smartphone version Web Monitor, available on the App Store. These applications are used for monitoring and recording the inverter’s internal operating variables through the Internet (alarms, real time production, etc.), in addition to the historical production data. Two communication ports available for each inverter (one for monitoring and one for plant controlling), allowing fast and simultaneous plant control.

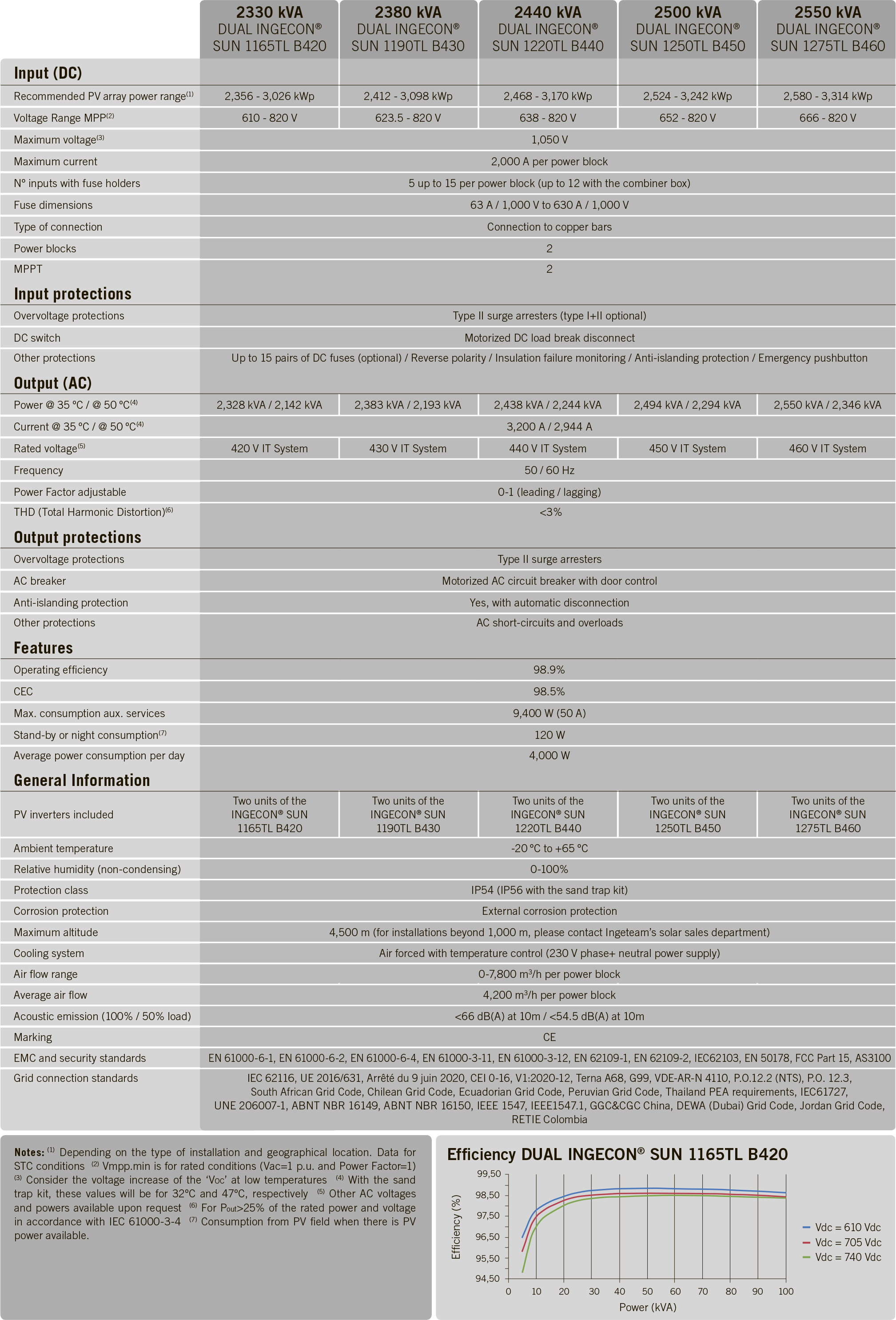

Technical information
