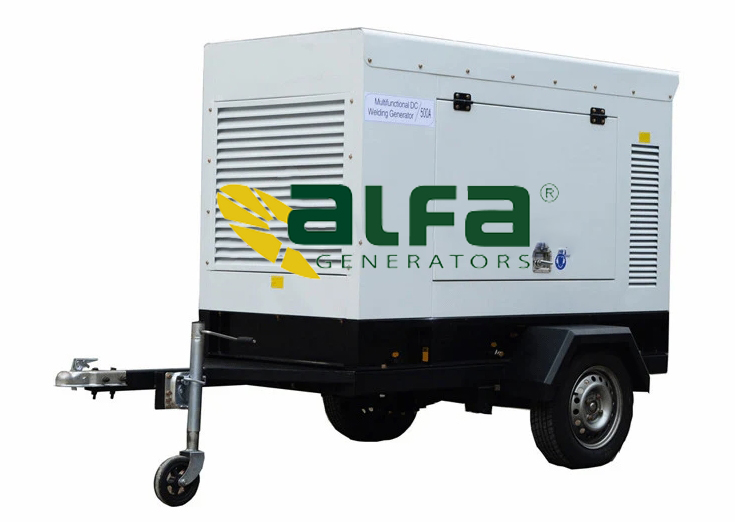

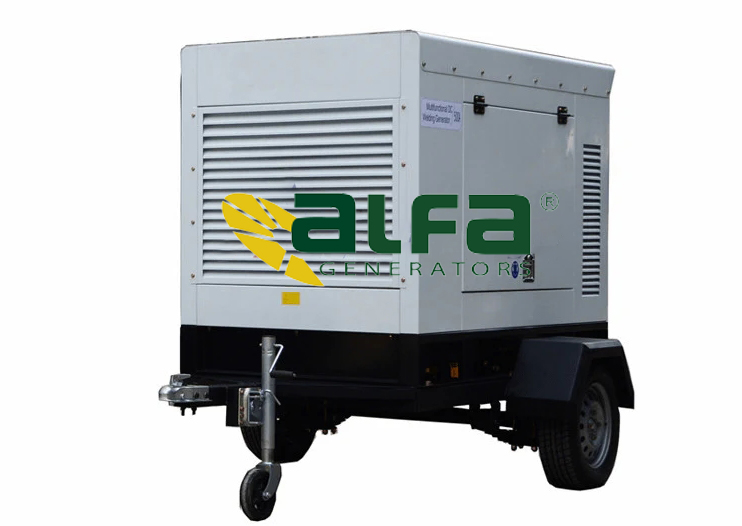

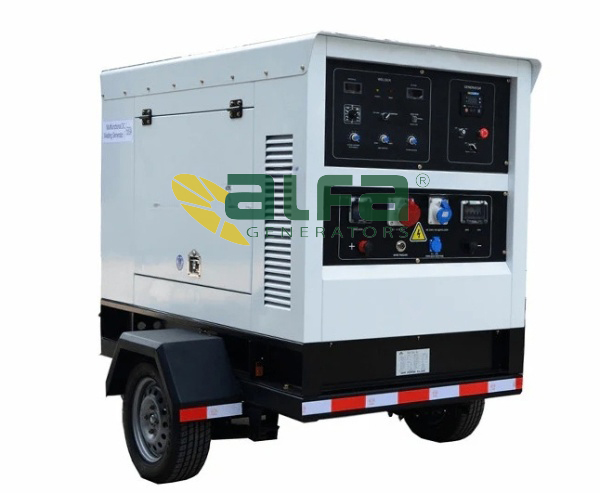

Perkins A-P71 65kVA Mobile Diesel Generator
For Rental , Trailer Generator
| Коротка інформація | |
|---|---|
| Виробник | Alfa Generators |
| Модель | A-P71 |
| Сертифікати | ISO9001, CE, SASO, SONCAP, ISO8528:5 |

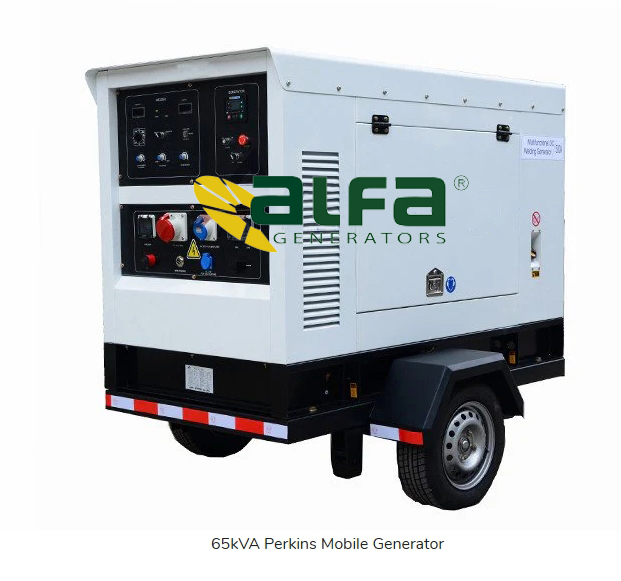

Mobile Generator 65kVA with Perkins Diesel Engine 1104A-44TG1 For Rental , Trailer Generator
65kVA Perkins Mobile Generator Supply Range:
- Perkins diesel engine model 1104A-44TG1, rate power of the diesel engine at 64.3kW at 1500 r/min;

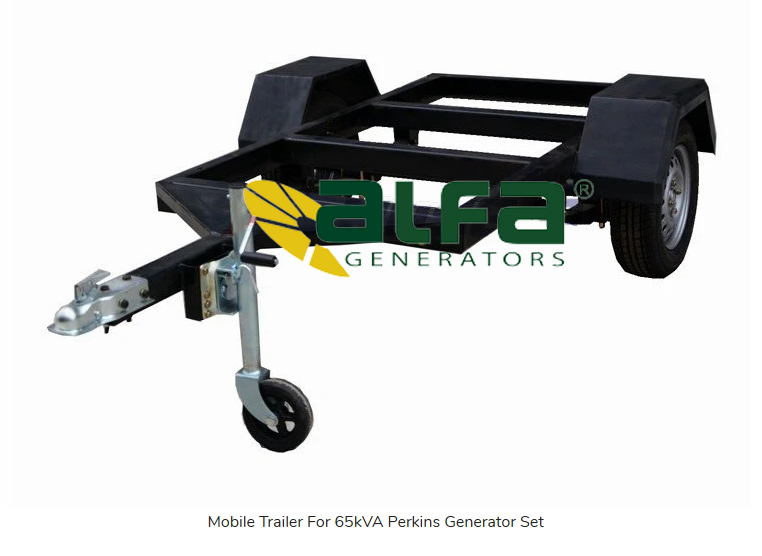

- Strong trailer for Perkins trailer generator, with single bearing, two wheels and a traction frame;
- Base frame fuel tank with capacity at 150 Litres for 12 hours continuous running at 100% load;

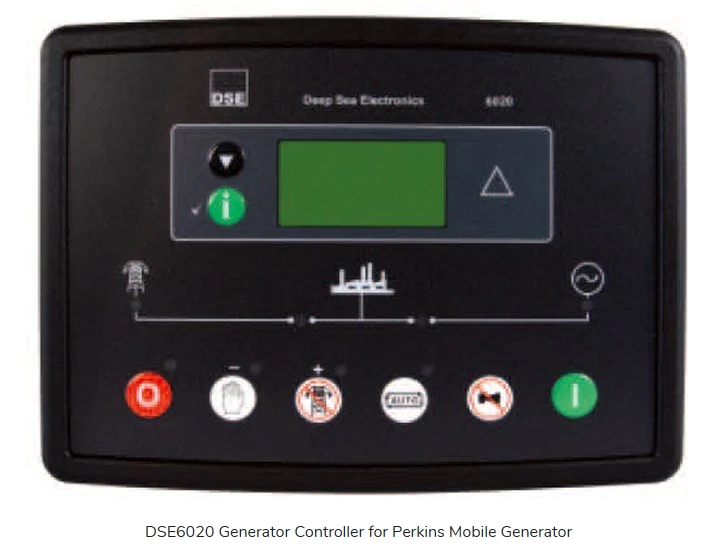

- Deepsea brand DSE6020 automatic start / stop controller with mains monitor for the trailer diesel generator;
- Delixi brand 125A breaker for the mobile generator;
- Automatic battery charger for the diesel generator with input voltage A.C. 110-280V, single phase;
- Free maintenance battery with battery cable and rack;
- Soundproof canopy and weatherproof canopy for the Perkins 65kVA mobile generator;
- Domestic muffler for the mobile diesel generator;
- Automatic control panel with complete electric parts;
- Complete documents and manual for the diesel generator, diesel engine, and alternator;
- Stamford alternator, Leroy Somer alternator, Mecc Alte alternator or Marathon alternator for optional;
- Other model of Deepsea controller or each model of ComAp controller or Smartgen brand controller for optional;
- The trailer generator with ISO 9001 and CE certificate;
Details Specification of the 65kVA Perkins Mobile Generator:
| Generator Set Specification | |||||||
| Model | A-P71 | ||||||
| Max. Power | kVA | 71 | |||||
| kW | 57 | ||||||
| Rate Power | kVA | 65 | |||||
| kW | 52 | ||||||
| Frequency | Hz | 50 | |||||
| Rate Voltage | V | 400/230 | |||||
| Rate Current | A | 93.8 | |||||
| Dimension For Open-type Genset | mm | 2250 X 900 X 1350 | |||||
| Weight For Open-type Genset | kg | 1350 | |||||
| Dimension For Soundproof Genset | mm | 3250 X 1500 X 1950 | |||||
| Weight For Soundproof Generator | kg | 1850 | |||||
Engine Specification:
| Engine Specification | ||
|---|---|---|
| Engine Manufacturer | Perkins | |
| Engine Brand | Perkins | |
| Engine Model | 1104A-44TG1 | |
| No. of Cylinder | 4 Cylinder in line | |
| Aspiration | Turbocharged | |
| Governor | Mech. | |
| Engine Max. Output Power | kW | 65.6 |
| Displacement | L | 4.4 |
| Starting Voltage | V | 12 |
| Bore | mm | 105 |
| Stroke | mm | 127 |
| Lubrication Oil Capacity | L | 7 |
Alternator Specification:
| Alternator Manufacturer | Hosem Power Co., Ltd. | ||||||
| Alternator Brand | Stamford | ||||||
| Model | ASF224E | ||||||
| Rate Output | kVA | 72 | |||||
| Rate Frequency | Hz | 50Hz | |||||
| Altitude | M | ≤1000 | |||||
| Insulation | Class H | ||||||
| Voltage Regulation | AVR Model SX460 | ||||||
| Protection Grade | IP23 | ||||||
| Alternator for optional | Leroy Somer, Marathon, Mecc Alte and Hosem Brushless alternator for optional |
||||||
Control Panel Specification:
| Controller Brand | Smartgen | |
| Controller Model | HGM6120N | |
| Breaker Brand | Delixi | |
| Breaker Capacity (A) | 125A | |
| Battery Charger | Supply | |
| Emergency Stop Button | Supply | |
| Automatic Mains Fail (AMF) | Supply | |
| The control panel supply the full protection with Alarm and Shutdown of the diesel generator include High Temp, Low Oil Pressure, Over / Under Speed, Over Load, Start / Stop Fail, Under / Over Voltage etc. | ||
| Optional controller: Each model of Deepsea, Smartgen, ComAp brand controller. | ||
