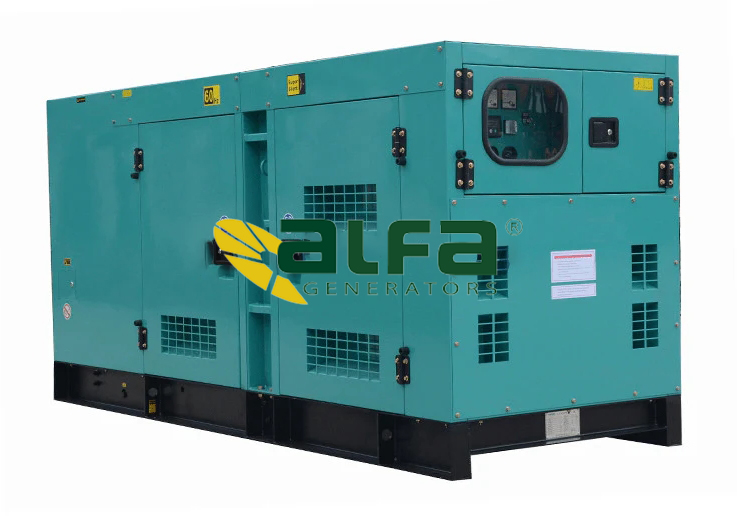

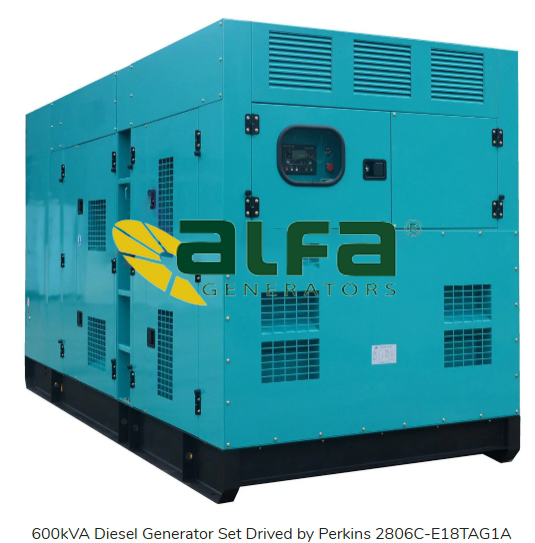

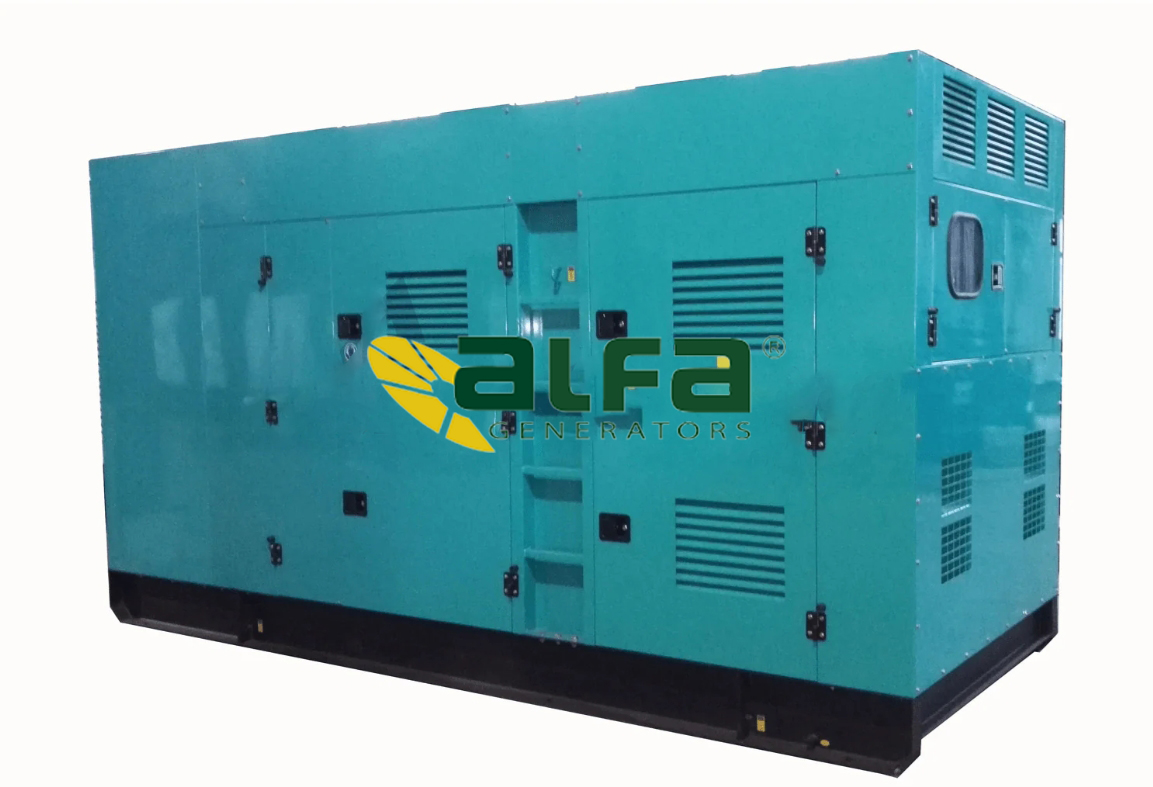

600kVA Diesel Generator
Set Drived by Perkins 2806C-E18TAG1A
| Коротка інформація | |
|---|---|
| Виробник | Alfa Generators |
| Модель | A-P660S |
| Сертифікати | ISO9001, CE, SASO, SONCAP, ISO8528:5 |
600kVA Diesel Generator Set Drived by Perkins 2806C-E18TAG1A
600kVA Diesel Generator Supply Range:
- Rated Output: 600kVA at 50Hz 1500 RPM
- Standby Output 660kVA at 50Hz 1500 R.P.M.
- Rate Voltage: A.C. 400/230V
- Rate Current: 886.0 A
- Perkins Diesel Engine Model 2806C-E18TAG1A, Max. Output of Diesel Engine at 584kW;

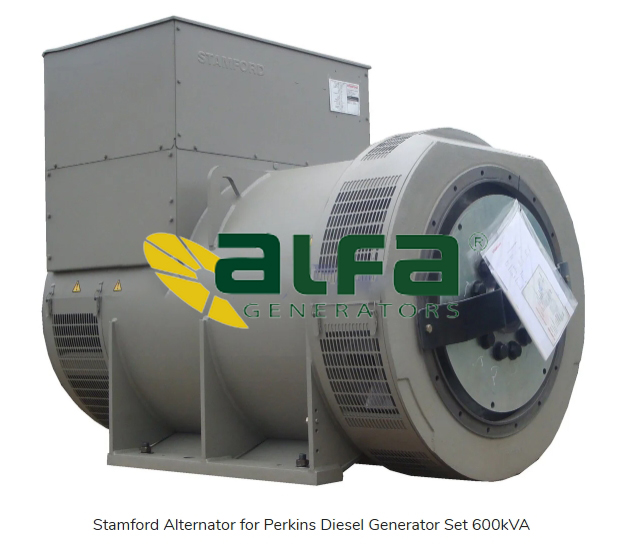

- Stamford Alternator HCI 544 E, Rated Output of Alternator at 600kVA;
- Deepsea DSE7320 Controller;
- 800 Litres Base Frame Fuel Tank for 600kVA Diesel Generator Set;
- 50 Degree Celsius Radiator;
- 1250A Breaker for 600kVA Diesel Generator Set;
- Supply with Automatic Battery Charger;
- Electric Speed Controller for 2806C-E18TAG1A Diesel Engine;
- Free Maintenance Battery with Cable Rack;
- SX440 AVR for Stamford Alternator HCI 544 C;
- Control Panel with Electric Components.
Specification of Perkins Diesel Generator 600kVA:
| Generator Set Specification | |||||||
| Model | A-P660 | ||||||
| Max. Power | kVA | 660 | |||||
| kW | 528 | ||||||
| Rate Power | kVA | 600 | |||||
| kW | 480 | ||||||
| Frequency | Hz | 50 | |||||
| Rate Voltage | V | 400/230 | |||||
| Rate Current | A | 866.1 | |||||
| Fuel Tank Capacity | L | 600 | |||||
| Dimension For Open-type Genset | mm | 3350 X 1550 X 2010 | |||||
| Weight For Open-type Genset | kg | 4706 | |||||
| Dimension For Soundproof Genset | mm | 4700 X 1800 X 2380 | |||||
| Weight For Soundproof Generator | kg | 5330 | |||||
| Noise Level for Soundproof Generator at 7M | dBA | 80 | |||||
| Battery | Two of Free Maintenance Battery | ||||||
Engine Specification of Perkins Diesel Generator 600kVA:
| Engine Specification | ||
|---|---|---|
| Engine Manufacturer | Perkins | |
| Engine Brand | Perkins | |
| Engine Model | 2806C-E18TAG1A | |
| No. of Cylinder | 6 Cylinder in line | |
| Aspiration | Turbocharged and Air to Air Aftercooled | |
| Governor | Electric | |
| Engine Max. Output Power | kW | 646 |
| Displacement | L | 22.9 |
| Compression Ratio | 14.5 : 1 | |
| Starting Voltage | V | 24 |
| Bore | mm | 160 |
| Stroke | mm | 190 |
| Lubrication Oil Capacity | L | 73.8 |
| Intake Air Flow | M3/Min | 42 |
| Fuel Consumption at 100% Load | L/H | 129 |
Alternator Specification
| Alternator Manufacturer | Cummins Generator Technologies | ||||||
| Alternator Brand | Stamford | ||||||
| Model | HCI 544 E | ||||||
| Rate Output | kVA | 610 | |||||
| Rate Frequency | Hz | 50 | |||||
| Altitude | M | ≤1000 | |||||
| Phase | 3 Phase | ||||||
| Working Temperature without power decrease | ≤40℃ | ||||||
| Working Altitude without power decrease | ≤1000m | ||||||
| Protection Grade | IP23 | ||||||
| Automatic Voltage Regulation | SX440 | ||||||
| Alternator for optional | Leroy Somer, Marathon, Mecc Alte and Hosem Brushless alternator for optional |
||||||
Control Panel Specification:
| Controller Brand | Deepsea | |
| Controller Model | DSE7320 | |
| Breaker Brand | Delixi | |
| Breaker Capacity (A) | 1250 | |
| Battery Charger | Smartgen Model BAC06A | |
| Emergency Stop Button | Supply | |
| Automatic Mains Fail (AMF) | Supply | |
| Fuel Level | Supply | |
| Automatic Transfer Switch | ATS as optional part | |
| The control panel supply the full protection with alarm and shutdown of the diesel generator include Start-up fault (generator set shutdown), High coolant temperature (alarm and generator set shutdown), Low oil pressure (alarm and generator set shutdown), Low fuel level (alarm), Low cooling fluid level alarm (as optional), Overload (alarm and generator set shutdown), Battery voltage high (alarm). | ||
| Optional controller: Each model of Deepsea, Smartgen, ComAp brand controller. | ||
