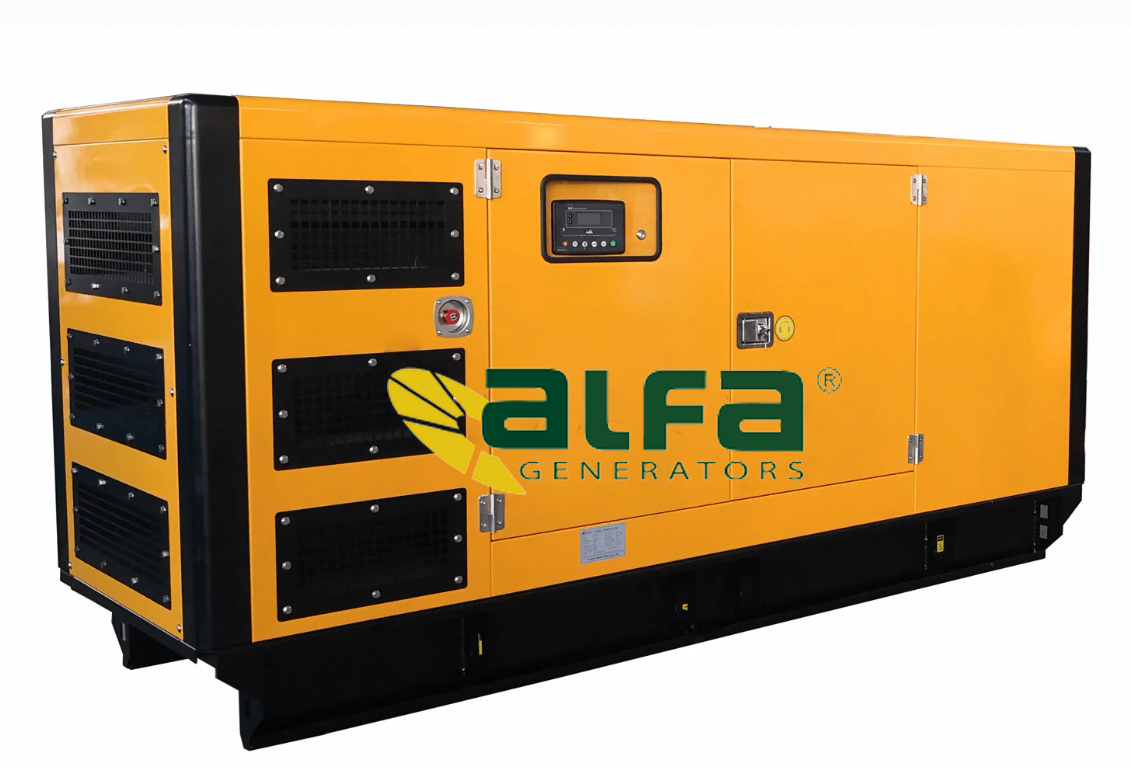

Perkins A-P440 Diesel Generator
Rate Output 400kVA
| Коротка інформація | |
|---|---|
| Виробник | Alfa Generators |
| Модель | A-P440 |
| Сертифікати | ISO9001, CE, SASO, SONCAP, ISO8528:5 |
Perkins Diesel Generator Rate Output 400kVA Three Phase
400kVA Perkins Diesel Generator Supply Range:
- Rated Output: 400kVA at 50Hz 1500 RPM
- Standby Output 440kVA at 50Hz 1500 R.P.M.
- Rate Voltage: A.C. 400/230V
- Rate Current: 578 A
- Perkins Diesel Engine Model 2206C-E13TAG3, Max. output of Diesel Engine at 412.5kW
- Stamford Alternator HCI 444 F, Rated Output of Alternator at 400kVA
- Deepsea DSE7320 Controller
- 600Litres Base Frame Fuel Tank for Perkins Generator
- 50 Degree Celsius Radiator
- 630A Breaker for 400kVA Cummins Generator
- Automatic Battery Charger
- ECU (Engine Control Unit) for 2206C-E13TAG3 Diesel Engine
- Two of 150A Free Maintenance Battery with Cable Rack
- SX460 AVR for Stamford Alternator HCI 444 F
- Control Panel with Electric Components
The Perkins industrial generator use the Stamford alternator as standard, we also have other most famous brand alternator in the world for optional, like Leroy Somer alternator, Mecc Alte alternator, Marathon alternator and Hosem Brushless alternator.

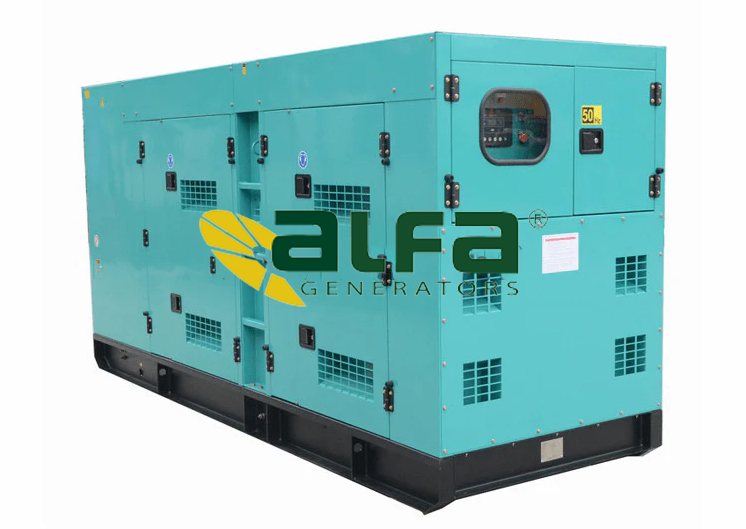

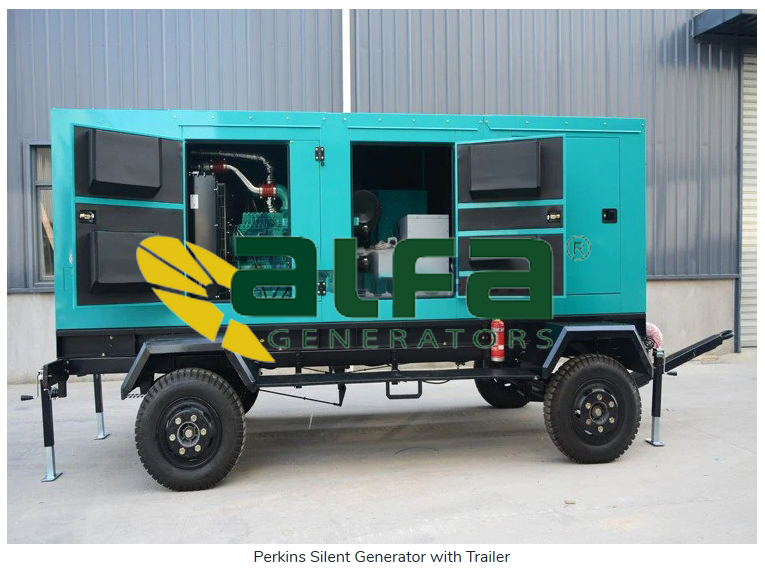

Alfa Generators Power supply the open-type diesel generator, soundproof diesel generator, waterproof diesel generator and trailer diesel generator to meet difference demand of the clients. Also we have the super silent diesel generator with noise level at 65bAD for commerial use, like vocal concert, uptown or office.
Specification of 400kVA Perkins Three Phase Generator:
| Generator Set Specification | |||||||
| Model | A-P440 | ||||||
| Max. Power | kVA | 440 | |||||
| kW | 352 | ||||||
| Rate Power | kVA | 400 | |||||
| kW | 320 | ||||||
| Frequency | Hz | 50 | |||||
| Rate Voltage | V | 400/230 | |||||
| Rate Current | A | 866.1 | |||||
| Fuel Tank Capacity | L | 577.4 | |||||
| Dimension For Open-type Genset | mm | 3500 X 1200 X 1960 | |||||
| Weight For Open-type Genset | kg | 3480 | |||||
| Dimension For Soundproof Genset | mm | 4300 X 1350 X 2250 | |||||
| Weight For Soundproof Generator | kg | 5260 | |||||
Engine Specification:
| Engine Manufacturer | Perkins U.K. | |
| Engine Brand | Perkins | |
| Engine Model | 2206C-E13TAG3 | |
| No. of Cylinder | 6 Cylinder in line | |
| Aspiration | Turbocharged and Air to Air Aftercooled | |
| Governor | Electric | |
| Engine Max. Output Power | kW | 413 |
| Displacement | L | 12.5 |
| Starting Voltage | V | 24 |
| Bore | mm | 130 |
| Stroke | mm | 157 |
| Lubrication Oil Capacity | L | 38 |

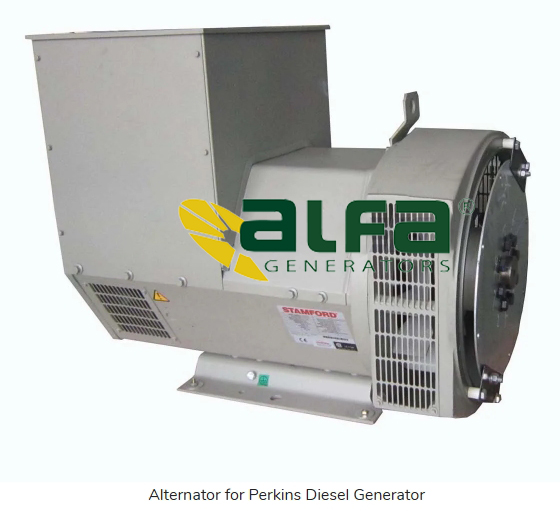

Alternator Specification
| Alternator Manufacturer | Cummins Generator Technologies | ||||||
| Alternator Brand | Stamford | ||||||
| Model | HCI 444 F | ||||||
| Rate Output | kVA | 400 | |||||
| Rate Frequency | Hz | 50 | |||||
| Altitude | M | ≤1000 | |||||
| Insulation | Class H | ||||||
| Protection Grade | IP23 | ||||||
| Voltage Regulation | AVR Model SX460 | ||||||
| Alternator for optional | Leroy Somer, Marathon, Mecc Alte and Hosem Brushless alternator for optional |
||||||

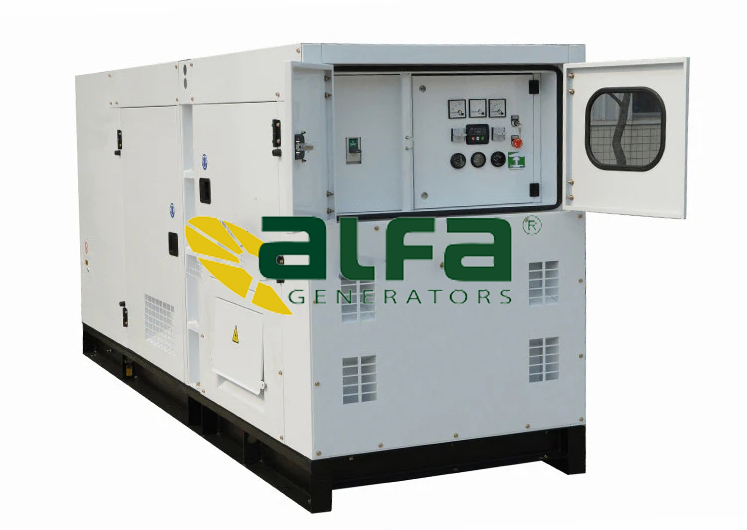

Control Panel Specification:
| Controller Brand | Deepsea | |
| Controller Model | DSE7320 | |
| Breaker Brand | Delixi | |
| Breaker Capacity (A) | 630A | |
| Battery Charger | Smartgen Model BAC06A | |
| Emergency Stop Button | Supply | |
| Automatic Mains Fail (AMF) | Supply | |
| The control panel supply the full protection with Alarm and Shutdown of the diesel generator include High Temp, Low Oil Pressure, Over / Under Speed, Over Load, Start / Stop Fail, Under / Over Voltage etc. | ||
| Optional controller: Each model of Deepsea, Smartgen, ComAp brand controller. | ||
