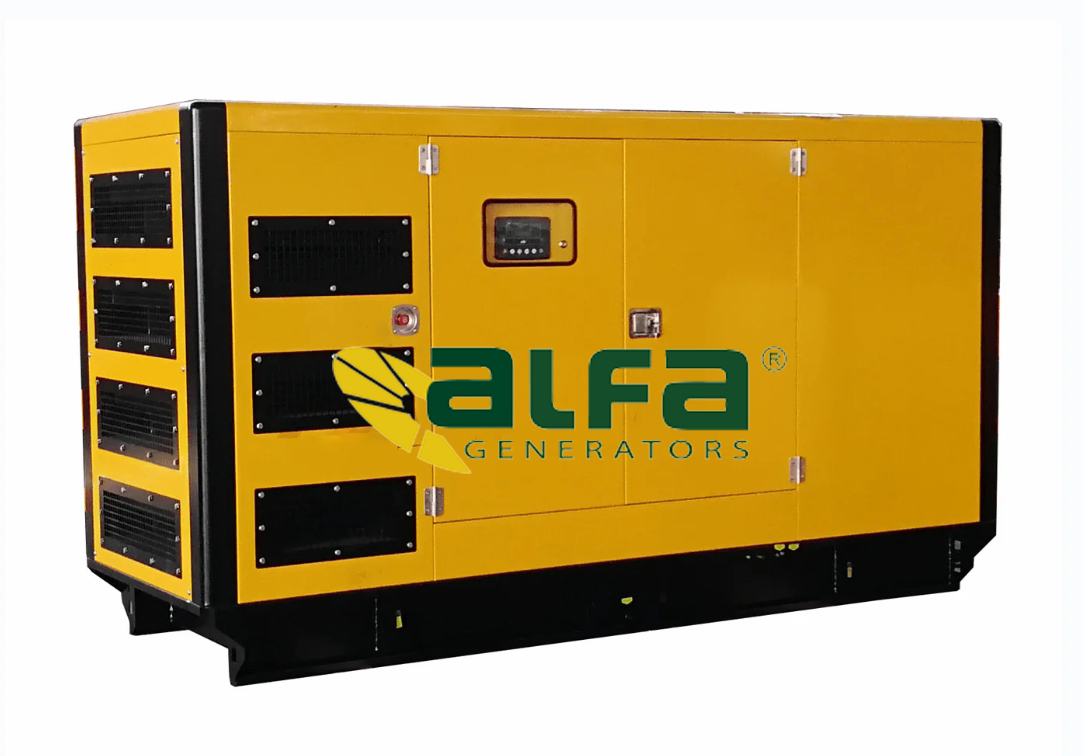

Perkins A-P275 250kVA

Waterproof Diesel Generator

Waterproof Generator with Perkins Engine Output at 250kVA

Supply Range of Stanby 250kVA Perkins Electric Generators:

• Waterproof Generator Continue Output: 250kVA at 50Hz;
• Max. Output of Perkins Waterproof Generator: 275kVA at 50Hz;
• Frequency: 50Hz (60Hz for optional);
• Rate Voltage: 415/240V (A.C. 110V-690V for optional);
• Perkins Diesel Engine Model 1506A-E88TAG3, Diesel Engine Standby Output 244kW;
• Leroy Somer Alternator Model TAL-A46-D, Rate Output 250kVA at 50Hz;
• Mounted with ComAp Brand Model MRS10 Automatic Start / Stop Controller;
• The 250kVA Waterproof Diesel Generator with 400A circuit breaker;
• Mounted with Dampers for Perkins Diesel Engine and Stamford Alternator;
• Supply 450Litres Base Frame Fuel Tank for Waterproof Diesel Generator, Can Be Continue Run for 8Hours at 75% Load.
• Supply 50 Degree Celsius Radiator with Complete Cooling System.
• Install the Domestic Type Muffler for the Soundproof Back Up Generator to Make It More Silent;

The soundproof and waterproof generator uses the ComAp brand MRS10 controller with AMF function, it can monitor the mains voltage to automatic the standby generators start and stop.

We supply the parallel panel, distribution panel, ATS, daily fuel tank, coolant heater, oil heater for client optional.

Supply the Open-type generator, Containerized generator and mobile diesel generator for client optional. The containerized generator and mobile diesel generator with weatherproof, it no problem for outdoor use.

The standby diesel generator supplied with free maintenance battery.

Specification of 250kVA Waterproof Generator:

Generator Set Specification
Model		A-P275
Max. Power	kVA	275
	kW	220
Rate Power	kVA	250
	kW	200
Frequency	Hz	50
Rate Voltage	V	400/230
Rate Current	A	360.9
Dimension For Open-type Genset	mm	2900 X 1200 X 1600
Weight For Open-type Genset	kg	2035
Dimension For Soundproof Genset	mm	3800 X 1300 X1800
Weight For Soundproof Generator	kg	3080

Engine Specification:

Engine Specification
Engine Manufacturer		Perkins
Engine Brand		Perkins
Engine Model		1506A-E88TAG3
No. of Cylinder		6 Cylinder in line
Aspiration		Turbocharged and Air to Air Aftercooled
Governor		Electric
Engine Max. Output Power	kW	224
Displacement	L	8.7
Starting Voltage	V	12
Bore	mm	116.6
Stroke	mm	135.9
Lubrication Oil Capacity	L	28.3

Alternator Specification:

Alternator Manufacturer				Emerson Electric Co.
Alternator Brand				Leroy Somer
Model				TAL-A46-D
Rate Output			kVA	250
Rate Frequency			Hz	50Hz
Altitude			M	≤1000
Insulation				Class H
Voltage Regulation				AVR Model R205
Protection Grade				IP23
Alternator for optional				Stamford, Marathon, Mecc Alte and Hosem Brushless alternator for optional

Control Panel Specification:

Controller Brand	ComAp
Controller Model	MRS10
Breaker Brand	Delixi
Breaker Capacity (A)	400A
Battery Charger	Supply
Emergency Stop Button	Supply
Automatic Mains Fail (AMF)	Supply
The control panel supply the full protection with Alarm and Shutdown of the diesel generator include High Temp, Low Oil Pressure, Over / Under Speed, Over Load, Start / Stop Fail, Under / Over Voltage etc.
Optional controller: Each model of Deepsea, Smartgen, ComAp brand controller.

Supply Range of Diesel Generator:

• Use the Stamford alternator, Leroy Somer alternator, Marathon alternator, Mecc Alte alternator, or Hosem brand brushless alternator for client choices.
• Automatic control panel with Deepsea brand controller, ComAp brand controller, or Smartgen brand controller with AMF monitor.
• The voltage of the electric generator ranges from A.C. 110V to 690V to meet all the clients' requirements.
• All electric generators come with a free maintenance battery for the starting system.
• Noise level is 70-75dBA for soundproof diesel generators, and super silent generators are available with a noise level of 65dBA.
