Perkins A-P250 225kVA
Back Up Generator
| Коротка інформація | |
|---|---|
| Виробник | Alfa Generators |
| Модель | A-P250 |
| Сертифікати | ISO9001, CE, SASO, SONCAP, ISO8528:5 |
Back Up Generator with Perkins Diesel Engine 250kVA
Supply Range of Stanby 250kVA Perkins Electric Generators:
- Back up Generator Continue Output: 225kVA at 50Hz;
- Standby Generator Max. Output: 250kVA at 50Hz;
- Frequency: 50Hz (60Hz for optional);
- Rate Voltage: 400/230V (A.C. 110V-690V for optional);
- Perkins Diesel Engine Model 1506A-E88TAG2, Diesel Engine Rated Output 204kW;
- Stamford Alternator Model UCDI 274 J, Rate Output 230kVA at 50Hz;
- Mounted with Deepsea Brand Model DSE7320 Automatic Start / Stop Controller;

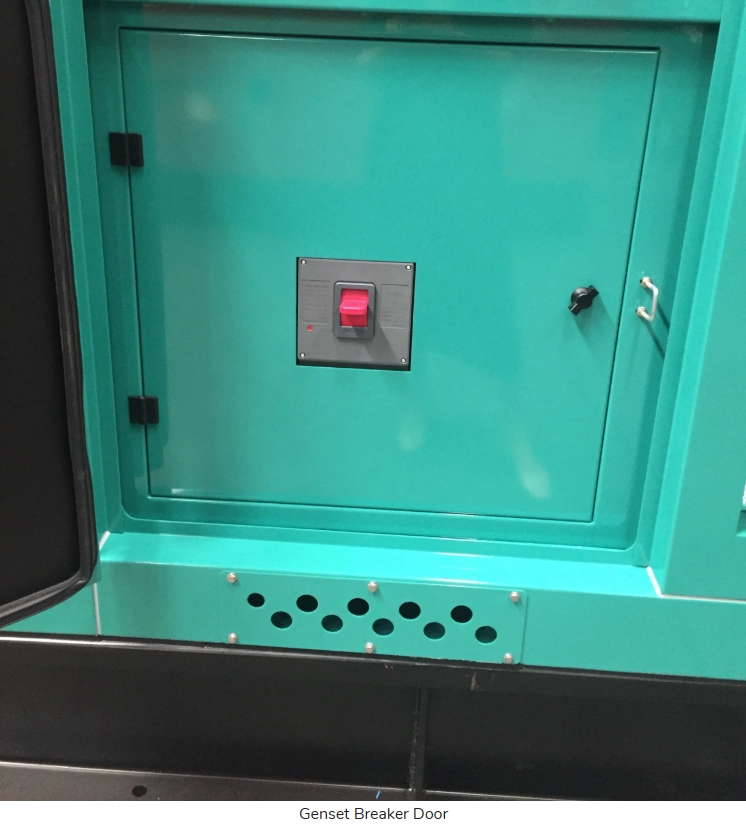

- The 250kVA Emergency Power Generator with 400A MCCB;
- Mounted with Dampers for Perkins Diesel Engine and Stamford Alternator;
- Supply 250Litres Base Frame Fuel Tank for the 250kVA Back Up Generator, Can Be Continue Run for 8Hours at 75% Load.
- Supply 50 Degree Celsius Radiator with Complete Cooling System.
- Install the Domestic Type Muffler for the Soundproof Back Up Generator to Make It More Silent;
The standby diesel generator use the Smartgen brand HGM6120 controller with AMF function, it can monitor the mains voltage to automatic the standby generators start and stop.
We supply the parallel panel, distribution panel, ATS, daily fuel tank, coolant heater, oil heater for client optional.
Supply the Open-type generator, Containerized generator and mobile diesel generator for client optional. The containerized generator and mobile diesel generator with weatherproof, it no problem for outdoor use.
The standby diesel generator supplied with free maintenance battery.
Specification of 250kVA Perkins Electric Generator:
| Generator Set Specification | |||||||
| Model | A-P250 | ||||||
| Max. Power | kVA | 250 | |||||
| kW | 200 | ||||||
| Rate Power | kVA | 225 | |||||
| kW | 180 | ||||||
| Frequency | Hz | 50 | |||||
| Rate Voltage | V | 400/230 | |||||
| Rate Current | A | 324.8 | |||||
| Dimension For Open-type Genset | mm | 2800 X 1200 X 1600 | |||||
| Weight For Open-type Genset | kg | 1695 | |||||
| Dimension For Soundproof Genset | mm | 3700X 1300 X 1800 | |||||
| Weight For Soundproof Generator | kg | 2720 | |||||
Engine Specification:
| Engine Specification | ||
|---|---|---|
| Engine Manufacturer | Perkins | |
| Engine Brand | Perkins | |
| Engine Model | 1506A-E88TAG2 | |
| No. of Cylinder | 6 Cylinder in line | |
| Aspiration | Turbocharged and Air to Air Aftercooled | |
| Governor | Electric | |
| Engine Max. Output Power | kW | 206 |
| Displacement | L | 8.7 |
| Starting Voltage | V | 12 |
| Bore | mm | 116.6 |
| Stroke | mm | 135.9 |
| Lubrication Oil Capacity | L | 28.3 |

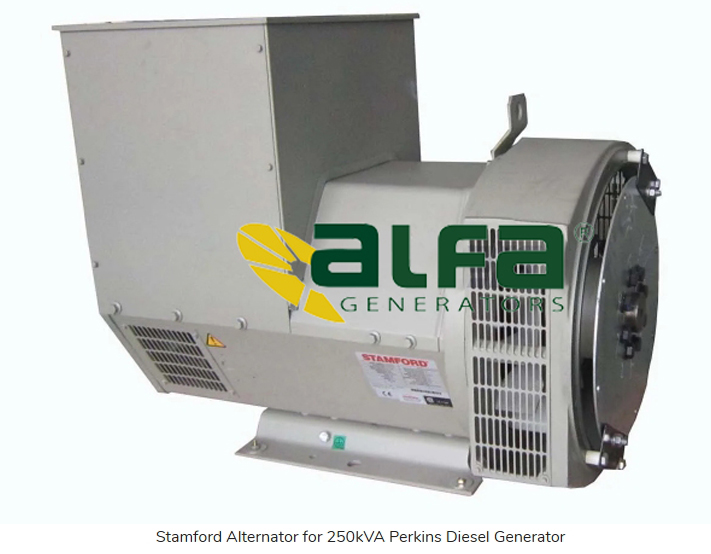

Alternator Specification:
| Alternator Manufacturer | Cummins Generator Technologies | ||||||
| Alternator Brand | Stamford | ||||||
| Model | UCDI 274 J | ||||||
| Rate Output | kVA | 230 | |||||
| Rate Frequency | Hz | 50Hz | |||||
| Altitude | M | ≤1000 | |||||
| Insulation | Class H | ||||||
| Voltage Regulation | AVR Model SX440 | ||||||
| Protection Grade | IP23 | ||||||
| Alternator for optional | Leroy Somer, Marathon, Mecc Alte and Hosem Brushless alternator for optional |
||||||
Control Panel Specification:
| Controller Brand | Smartgen | |
| Controller Model | HGM6120N | |
| Breaker Brand | Delixi | |
| Breaker Capacity (A) | 400A | |
| Battery Charger | Supply | |
| Emergency Stop Button | Supply | |
| Automatic Mains Fail (AMF) | Supply | |
| The control panel supply the full protection with Alarm and Shutdown of the diesel generator include High Temp, Low Oil Pressure, Over / Under Speed, Over Load, Start / Stop Fail, Under / Over Voltage etc. | ||
| Optional controller: Each model of Deepsea, Smartgen, ComAp brand controller. | ||
