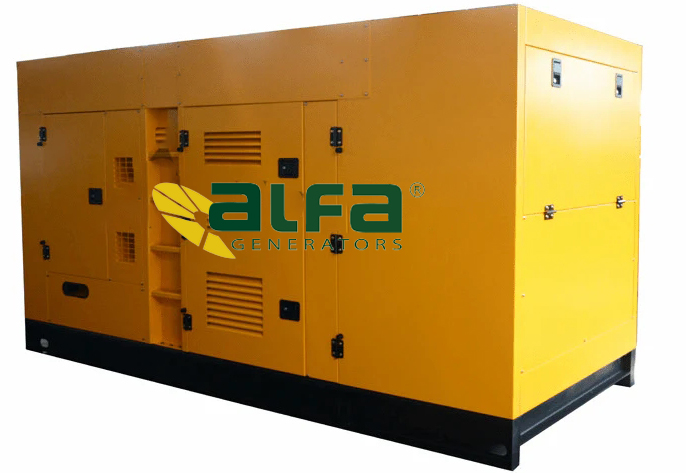

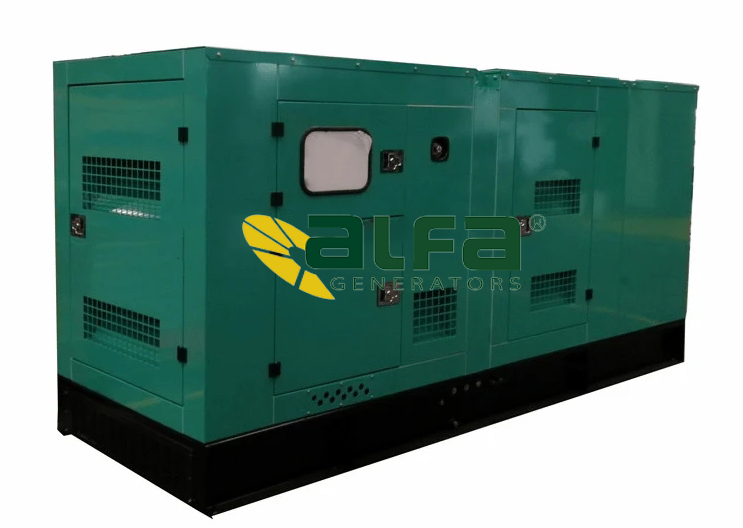

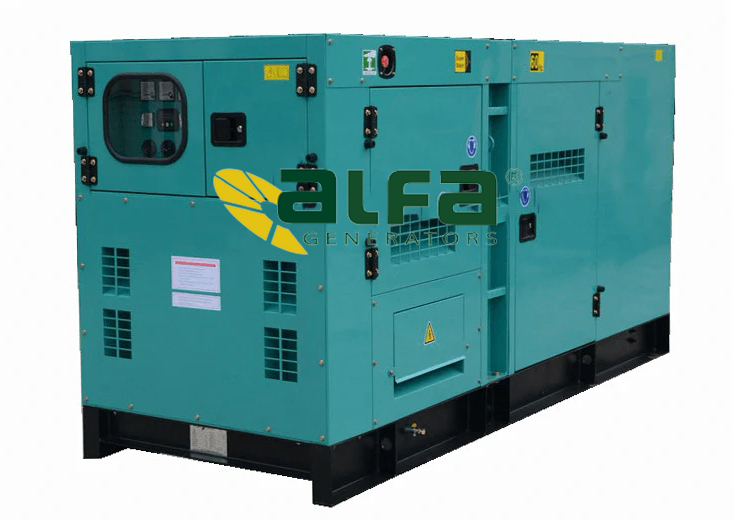

Perkins A-P220 200kVA
Industrial Generator with Engine 1106A-70TAG4
| Коротка інформація | |
|---|---|
| Виробник | Alfa Generators |
| Модель | A-P220 |
| Сертифікати | ISO9001, CE, SASO, SONCAP, ISO8528:5 |

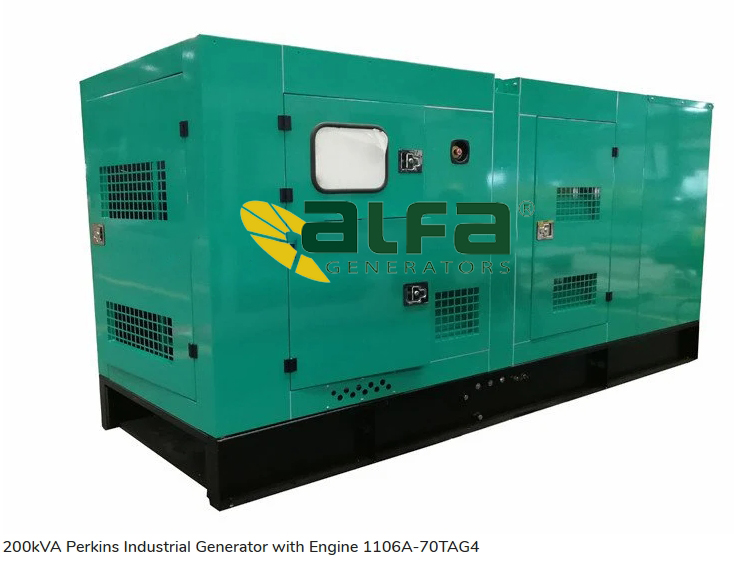

200kVA Perkins Industrial Generator with Engine 1106A-70TAG4
Supply Range of 200kVA Perkins Generators:
- Diesel Generator Continue Output: 200kVA at 50Hz;
- Diesel Generator Max. Output: 220kVA at 50Hz;
- Frequency: 50Hz (60Hz for optional);
- Rate Voltage: 400/230V (A.C. 110V-690V for optional);
- Perkins Diesel Engine Model 1106A-70TAG4;
- Leroy Somer Alternator Model TAL-A46-B;

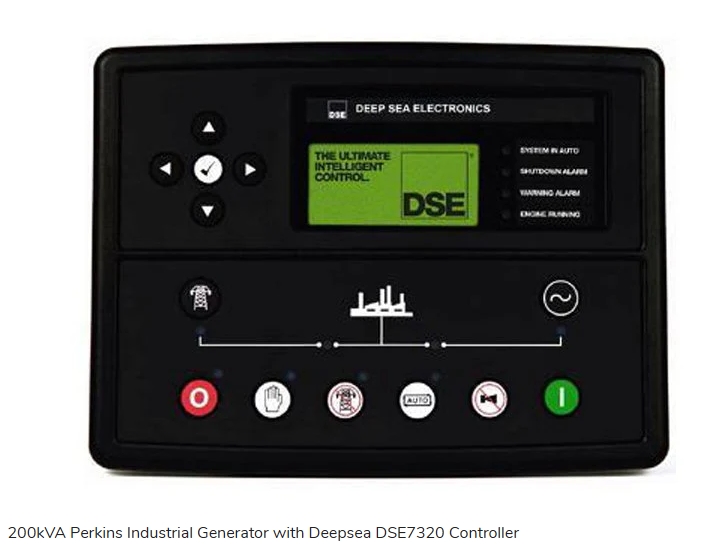

- Mounted with Deepsea Brand Model DSE7320 Automatic Start / Stop Controller;
- The 200kVA Diesel Generator with 400A MCCB;
- Mounted with Dampers for Perkins Diesel Engine and Leroy Somer Alternator;
- Supply 250Litres Base Frame Fuel Tank for the 200kVA Industrial Generator, Can Be Continue Run for 8Hours at 75% Load.
- Supply 50 Degree Celsius Radiator with Complete Cooling System.
- Install the Domestic Type Muffler for the Soundproof Diesel Generator to Make It More Silent;
- Have Stamford alternator, Marathon alternator, Mecc Alte alternator or Hosem brushless alternator for optional.
- Have ComAp controller or Smartgen controller for optional.
Specification of 200kVA Perkins Industrial Generator:
| Generator Set Specification | |||||||
| Model | A-P220 | ||||||
| Max. Power | kVA | 220 | |||||
| kW | 176 | ||||||
| Rate Power | kVA | 200 | |||||
| kW | 160 | ||||||
| Frequency | Hz | 50 | |||||
| Rate Voltage | V | 400/230 | |||||
| Oil Consumption | L/H | 0.126 | |||||
| Dimension For Open-type Genset | mm | 2550 X 800 X 1400 | |||||
| Weight For Open-type Genset | kg | 1630 | |||||

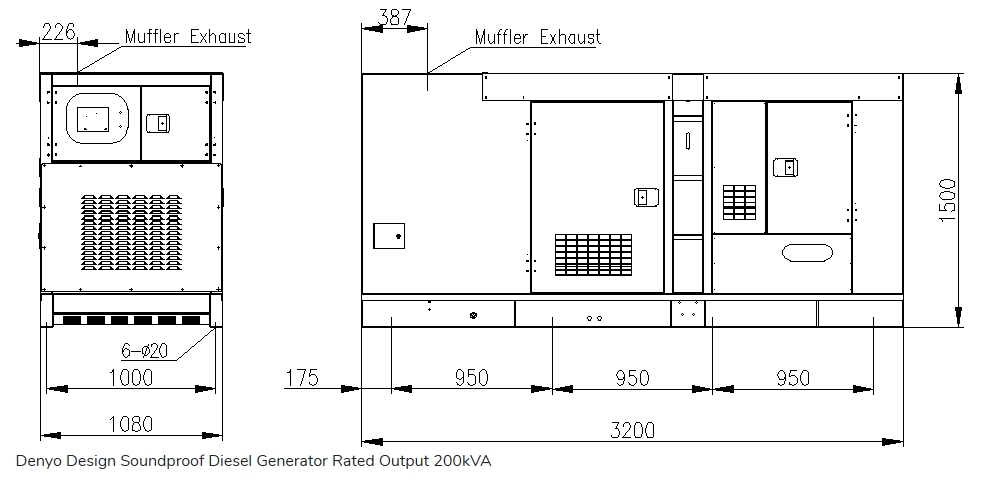

| Dimension For Soundproof Genset | mm | 3200 X 1080 X 1500 | |||||
| Weight For Soundproof Generator | kg | 2090 | |||||
| Genset Controller Brand and Model | Deepsea DSE7320 | ||||||
Engine Specification:
| Engine Specification | ||
|---|---|---|
| Engine Manufacturer | Perkins | |
| Engine Brand | Perkins | |
| Engine Model | 1106A-70TAG4 | |
| No. of Cylinder | 6 Cylinder in line | |
| Aspiration | Turbocharged and Air to Air Aftercooled | |
| Governor | Electric | |
| Engine Max. Output Power | kW | 196.3 |
| Displacement | L | 7.01 |
| Starting Voltage | V | 12 |
| Bore | mm | 105 |
| Stroke | mm | 135 |
| Exhaust Gas Flow | m³/min | 24.4 |
| Exhaust Gas Temperature | ℃ | 478 |
| Lubrication Oil Capacity | L | 16.5 |
| Cooling Water Capacity | L | 21 |
Alternator Specification:
| Alternator Manufacturer | Emerson Electric Co. | ||||||
| Alternator Brand | Leroy Somer | ||||||
| Model | TAL-A46-B | ||||||
| Rate Output | kVA | 200 | |||||
| Rate Frequency | Hz | 50Hz | |||||
| Altitude | M | ≤1000 | |||||
| Insulation | Class H | ||||||
| Voltage Regulation | AVR Model R205 | ||||||
| Protection Grade | IP23 | ||||||
| Alternator for optional | Leroy Somer, Marathon, Mecc Alte and Hosem Brushless alternator for optional |
||||||
