Perkins A-P22 20kVA Diesel Generator For House
| Коротка інформація | |
|---|---|
| Виробник | Alfa Generators |
| Модель | A-P22 |
| Сертифікати | ISO9001, CE, SASO, SONCAP, ISO8528:5 |
Diesel Generator with Perkins Diesel Engine Model 404A-22G1 Rate Output 20kVA For House
Diesel generator with Perkins diesel engine model 404A-22G1 and Leroy Somer alternator model TAL-A40-F prime output at 20kVA, standby output 22kVA.
TThe low noise diesel generator uses one of the most famous alternator brand, the Stamford alternator model PI044F made by Cummins Generator Technologies. The alternator with automatic voltage regulation.
Feature of 20kVA Perkins Diesel Generator:
| Generator Set Specification | |||||||
| Model | A-P22 | ||||||
| Max. Power | kVA | 22 | |||||
| kW | 17.6 | ||||||
| Rate Power | kVA | 20 | |||||
| kW | 16 | ||||||
| Frequency | Hz | 50 | |||||
| Rate Voltage | V | 400/230 | |||||
| Rate Current | A | 28.9 | |||||
| Dimension For Open-type Genset | mm | 1390 X 550 X 1200 | |||||
| Weight For Open-type Genset | kg | 493 | |||||

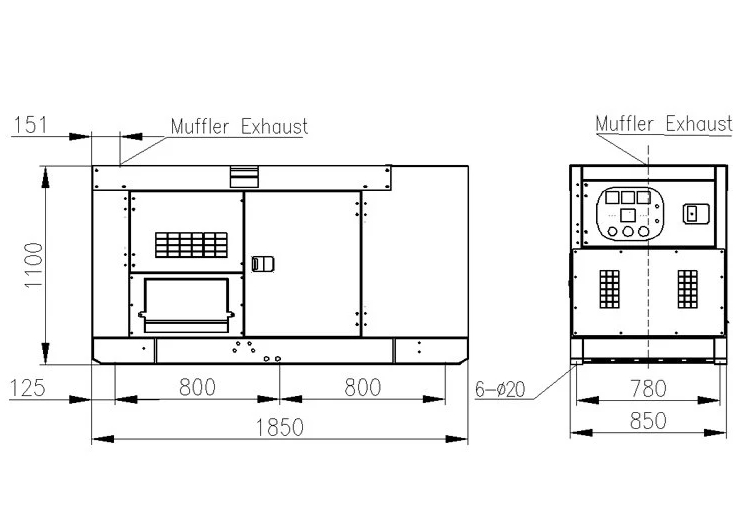

| Dimension For Soundproof Genset | mm | 1850 X 850 X 1100 | |||||
| Weight For Soundproof Generator | kg | 673 | |||||
Engine Specification:
| Engine Specification | ||
|---|---|---|
| Engine Manufacturer | Perkins | |
| Engine Brand | Perkins | |
| Engine Model | 404A-22G1 | |
| No. of Cylinder | 4 Cylinder in line | |
| Aspiration | Naturally Aspirated | |
| Governor | Mechanical Governor | |
| Engine Max. Output Power | kW | 20.6 |
| Displacement | L | 2.216 |
| Starting Voltage | V | 12 |
| Bore | mm | 84 |
| Stroke | mm | 100 |
| Lubrication Oil Capacity | L | 10.6 |
Alternator Specification:
| Alternator Manufacturer | Emerson Electric Co. | ||||||
| Alternator Brand | Leroy Somer | ||||||
| Model | TAL-A40-F | ||||||
| Rate Output | kVA | 20 | |||||
| Rate Frequency | Hz | 50Hz | |||||
| Altitude | M | ≤1000 | |||||
| Insulation | Class H | ||||||
| Voltage Regulation | AVR | ||||||
| Protection Grade | IP23 | ||||||
| Alternator for optional | Stamford, Marathon, Mecc Alte and Hosem Brushless alternator for optional |
||||||
Control Panel Specification:
| Controller Brand | Smartgen | |
| Controller Model | HGM6120N | |
| Breaker Brand | Delixi | |
| Breaker Capacity (A) | 32A | |
| Battery Charger | Supply | |
| Emergency Stop Button | Supply | |
| Automatic Mains Fail (AMF) | Supply | |
| The control panel supply the full protection with Alarm and Shutdown of the diesel generator include High Temp, Low Oil Pressure, Over / Under Speed, Over Load, Start / Stop Fail, Under / Over Voltage etc. | ||
| Optional controller: Each model of Deepsea, Smartgen, ComAp brand controller. | ||

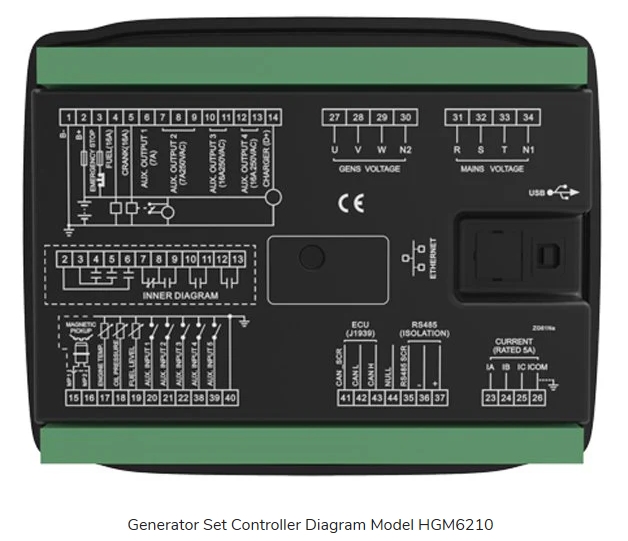

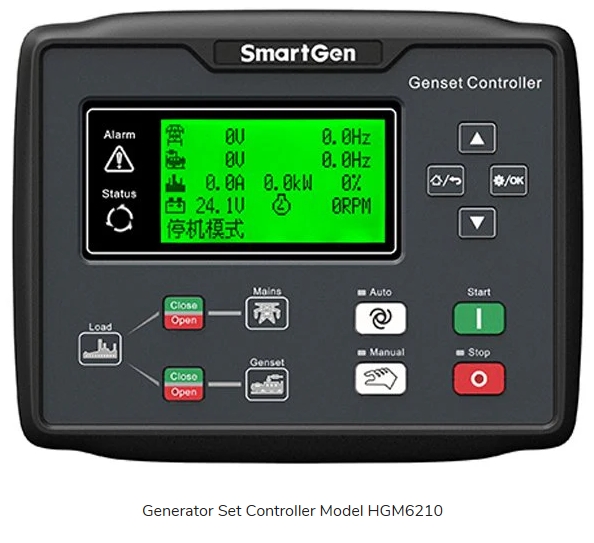

The Perkins industrial generator with Smartgen brand model HGM6120 controller with AMF function. It has the complete protection of the diesel generator, and it will automatic the mains power for control the Perkins generator automatic start and stop. We also have the Deepsea brand and ComAp brand controller for users' optional.
Supply the Perkins diesel generator output from 10kVA to 2250kVA, it can meet most of the electric demand in each place like the factories, highway, school, hospital, mall and other places.
