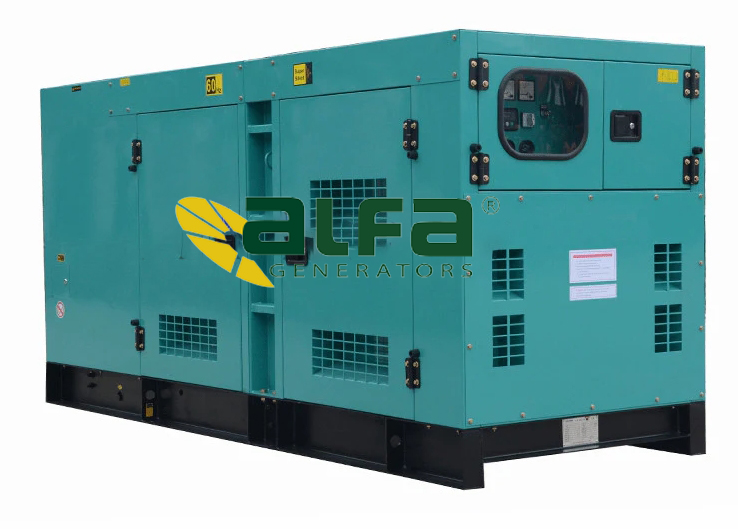

Perkins A-P198 180kVA Industrial Generator
| Коротка інформація | |
|---|---|
| Виробник | Alfa Generators |
| Модель | A-P198 |
| Сертифікати | ISO9001, CE, SASO, SONCAP, ISO8528:5 |
Generator Industrial Rated Output 180kVA with Perkins Diesel Engine
200kVA Diesel Generator Supply Scope:
- Industrial Generator standby output 200kVA;
- Industrial Generator prime output 180kVA;
- Rate frequency at 50Hz;
- Perkins diesel engine 1106A-70TAG3;
- Hosem Power alternator model ASF274G;

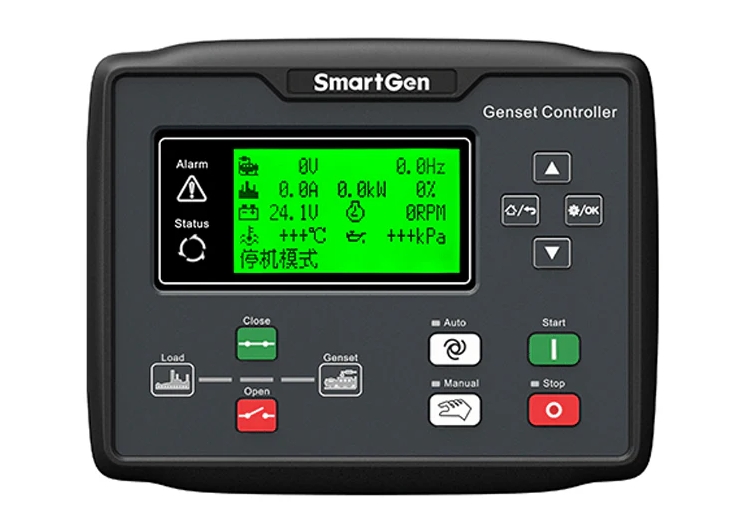

- Smartgen brand HGM6110N automatic start / stop controller;
- BAC60A Automatic Battery Charger;
- Two of 100A free maintenance battery for starting;
- 200 Litres base frame fuel tank for the generator industrial;

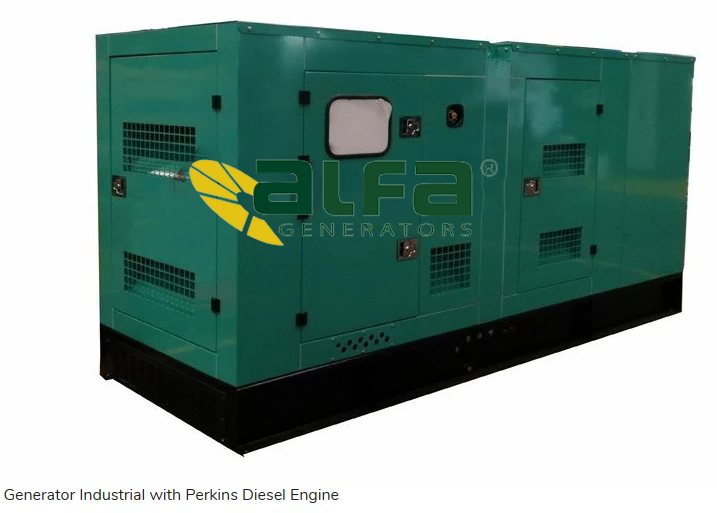

- Soundproof and weatherproof canopy for the Perkins industrial generator;
- ATS, Parallel Panel, Distribution Panel for optional.
Note:
- Standby power for generator industrial 100%, which is available for up to 500 hours per year of which maximum of 300 hours per year is continuous running, not exceedable, but required power for governing purpose only has to be considered. Necessary supply of engine power usually 10% for governing purpose only.
- Prime power 100%, average power output ≤ 80%, no time limitation, plus 5% additional power for governing purpose only.
- Continuous power 100%, no time limitation, plus 10% power for governing purpose only.
- Ratings in accordance with ISO 8525 LTP. Alternator efficiency please see datasheet. 1500 min-1 = kVA, 1800 min-1 = kWe.
- At calorific value 42700 kJ/kg + 5 %, density 0.835 kg/dm³, temperature 280 K.
- Technical data and max. permissible torque for fan drive see data sheet.
- Sound power values measured in accordance with ISO 6798.
- The heat quantities are valid for the dimensioning of the cooling system.
- They are given for the engine with the highest fuel consumption. For further application guidance see generator set Installation Manual.
- Generator industrial all data are provided for informational purposes only and are subject to amendment.
Specification of 200kVA Diesel Generator:
| Generator Set Specification | |||||||
| Model | A-P200 | ||||||
| Max. Power | kVA | 200 | |||||
| kW | 160 | ||||||
| Rate Power | kVA | 182 | |||||
| kW | 145 | ||||||
| Frequency | Hz | 50 | |||||
| Rate Voltage | V | 400/230 | |||||
| Oil Consumption | L/H | 0.115 | |||||
| Dimension For Open-type Genset | mm | 2550 X 800 X 1400 | |||||
| Weight For Open-type Genset | kg | 1630 | |||||

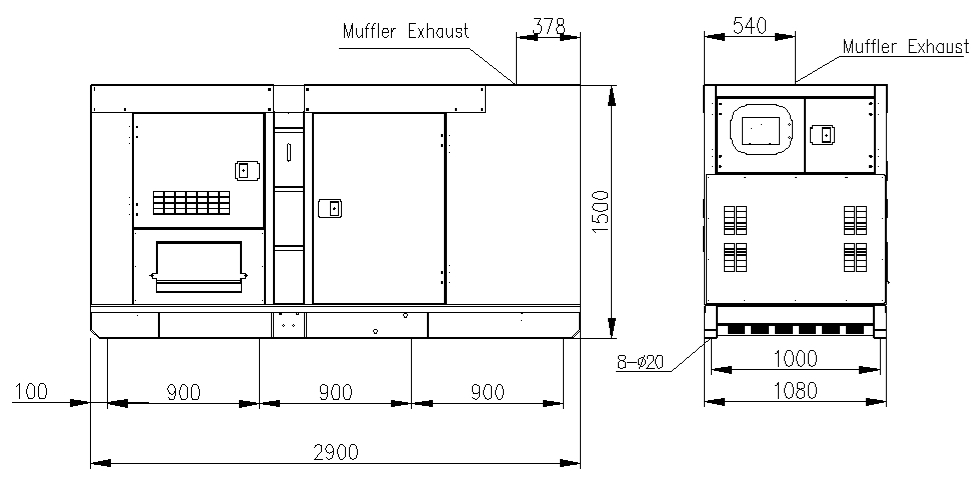

| Dimension For Soundproof Genset | mm | 2900 X 1080 X 1500 | |||||
| Weight For Soundproof Generator | kg | 2090 | |||||
| Genset Controller Brand and Model | Smartgen HGM6110N | ||||||
Engine Specification:
| Engine Specification | ||
|---|---|---|
| Engine Manufacturer | Perkins U.K. | |
| Engine Brand | Perkins | |
| Engine Model | 1106A-70TAG3 | |
| No. of Cylinder | 6 Cylinder in line | |
| Aspiration | Turbocharged and Air to Air Aftercooled | |
| Governor | Electric | |
| Engine Max. Output Power | kW | 179.8 |
| Displacement | L | 7.01 |
| Starting Voltage | V | 12 |
| Bore | mm | 105 |
| Stroke | mm | 135 |
| Exhaust Gas Flow | m³/min | 24.4 |
| Exhaust Gas Temperature | ℃ | 478 |
| Lubrication Oil Capacity | L | 16.5 |
| Cooling Water Capacity | L | 21 |
Alternator Specification:
| Alternator Manufacturer | Hosem Power Co., Ltd | ||||||
| Alternator Brand | Hosem | ||||||
| Model | ASF274G | ||||||
| Rate Output | kVA | 182 | |||||
| Rate Frequency | Hz | 50Hz | |||||
| Altitude | M | ≤1000 | |||||
| Insulation | Class H | ||||||
| Voltage Regulation | AVR Model SX460 | ||||||
| Protection Grade | IP23 | ||||||
| Alternator for optional | Leroy Somer, Marathon, Mecc Alte and Hosem Brushless alternator for optional |
||||||
