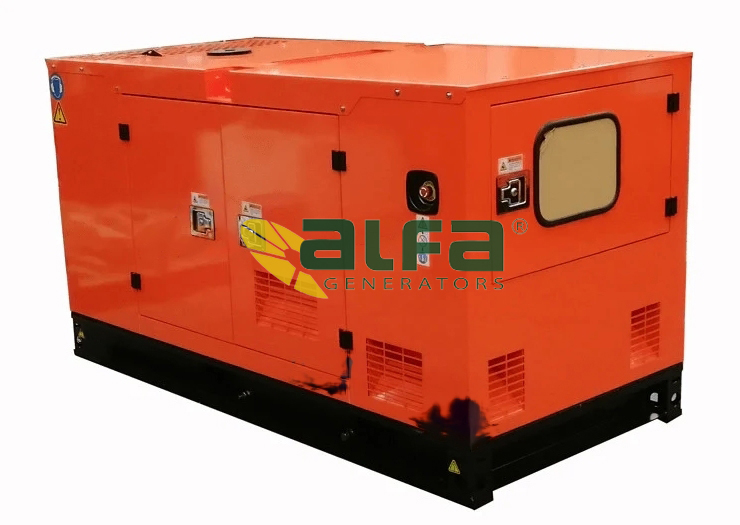

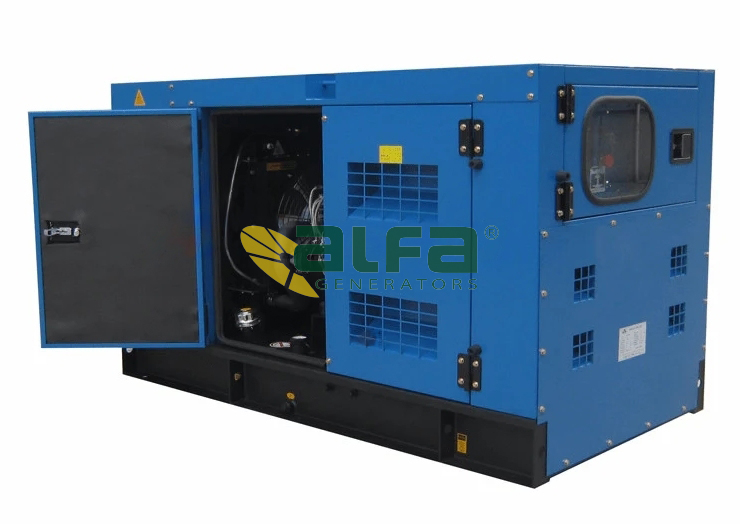

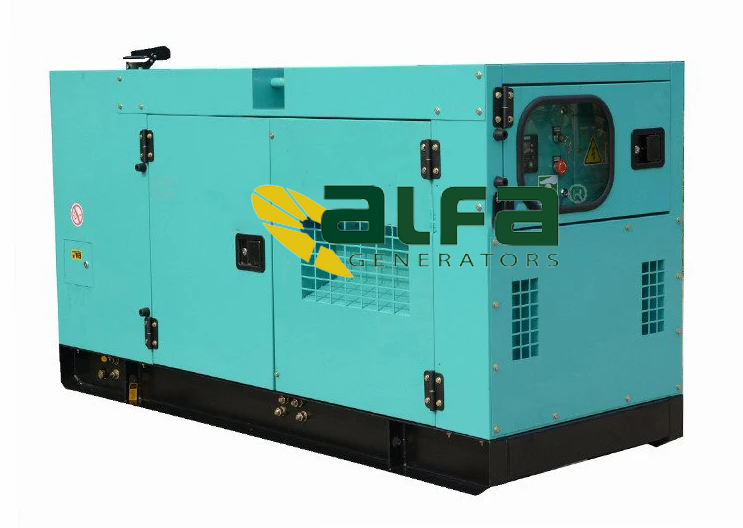

Perkins A-P17 15kVA Diesel Generator
with Diesel Engine 403A-15G2
| Коротка інформація | |
|---|---|
| Виробник | Alfa Generators |
| Модель | A-P17 |
| Сертифікати | ISO9001, CE, SASO, SONCAP, ISO8528:5 |
Rate Output 15kVA Diesel Generator with Perkins Diesel Engine 403A-15G2
12kW Soundproof Generator Supply Scope:
- Diesel generator assembled with Perkins diesel engine 403A-15G2;
- Use the Stamford alternator model PI 044 G for the Perkins silent generator;
- Deepsea DSE3110 controller for the rate output 12kW diesel generator;
- Supply base frame with fuel tank capacity at 40 Litres, enough for diesel generator to continue running for 12 hours;
- Delixi brand breaker with capacity at 32A, optional with ABB, Schneider, & Siemens brand;

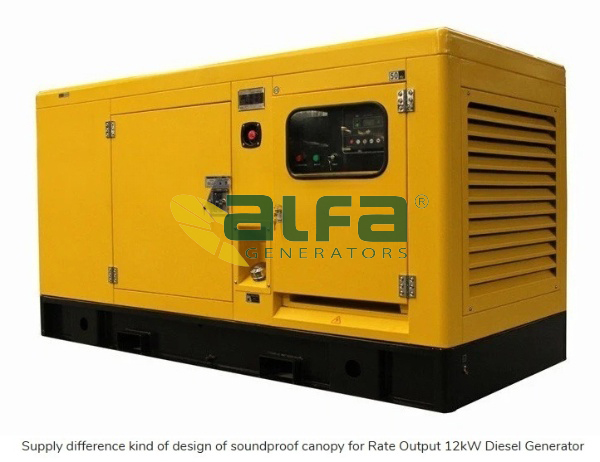

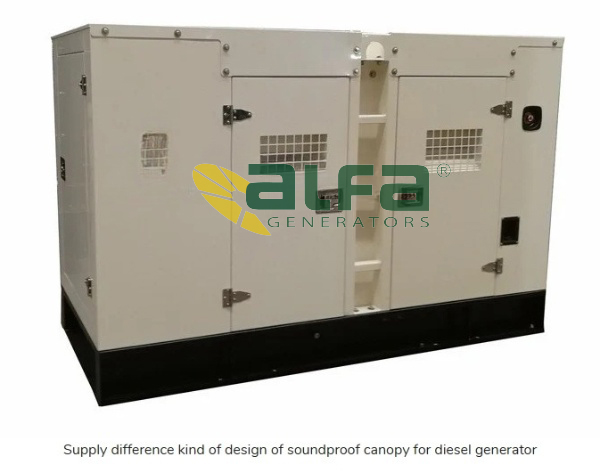

- Supply soundproof & weatherproof canopy for the 15kVA generator set;
- 60A free maintenance battery for the rate output 12kW diesel generator;
- Supply the automatic transfer switch (ATS), parallel panel, distribution panel, engine coolant heater, engine oil heater, and alternator heater for optional parts;
- Supply each spare part for the 15kVA diesel generator;
Explain for Standby Output and Rate Output:
Prime Output: is available for an unlimited number of annual hours in variable load application, in accordance with GB/T2820-97 (eqv ISO8528); a 10% overload capability is avaiable for a period of 1 hour with a 12-hours period of operation.
Standby Output: is applicable for supplying emergency power for duration of a utility power interruption. No overlad, utility parallel or negotiated outage operation capability is available at this rating.
Specification of Perkins Silent Generator:
| Generator Set Specification | |||||||
| Model | A-P17 | ||||||
| Max. Power | kVA | 17 | |||||
| kW | 13 | ||||||
| Rate Power | kVA | 15 | |||||
| kW | 12 | ||||||
| Frequency | Hz | 50 | |||||
| Rate Voltage | V | 400/230 | |||||
| Rate Current | A | 21.7 | |||||
| Dimension For Open-type Genset | mm | 1150 X 550 X 1200 | |||||
| Weight For Open-type Genset | kg | 423 | |||||

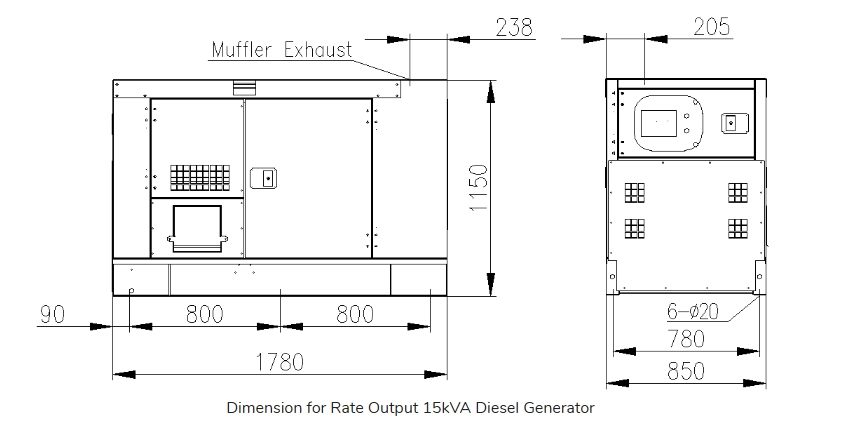

| Dimension For Soundproof Genset | mm | 1780 X 850 X 1150 | |||||
| Weight For Soundproof Generator | kg | 603 | |||||
Engine Specification:
| Engine Specification | ||
|---|---|---|
| Engine Manufacturer | Perkins | |
| Engine Brand | Perkins | |
| Engine Model | 403A-15G2 | |
| No. of Cylinder | 3 Cylinder in line | |
| Aspiration | Naturally Aspirated | |
| Governor | Mech. | |
| Engine Max. Output Power | kW | 11.2 |
| Displacement | L | 1.49 |
| Starting Voltage | V | 12 |
| Bore | mm | 84 |
| Stroke | mm | 80 |
| Lubrication Oil Capacity | L | 6 |
Alternator Specification:
| Alternator Manufacturer | Cummins Generator Technologies | ||||||
| Alternator Brand | Stamford | ||||||
| Model | PI 044G | ||||||
| Rate Output | kVA | 15 | |||||
| Rate Frequency | Hz | 50Hz | |||||
| Altitude | M | ≤1000 | |||||
| Insulation | Class H | ||||||
| Voltage Regulation | AVR Model SX480 | ||||||
| Protection Grade | IP23 | ||||||
| Alternator for optional | Leroy Somer, Marathon, Mecc Alte and Hosem Brushless alternator for optional |
||||||
Control Panel Specification:
| Controller Brand | Deepsea | |
| Controller Model | DSE3110 | |
| Breaker Brand | Delixi | |
| Breaker Capacity (A) | 32A | |
| Battery Charger | Supply | |
| Emergency Stop Button | Supply | |
| Automatic Mains Fail (AMF) | Supply | |
| The control panel supply the full protection with Alarm and Shutdown of the diesel generator include High Temp, Low Oil Pressure, Over / Under Speed, Over Load, Start / Stop Fail, Under / Over Voltage etc. | ||
| Optional controller: Each model of Deepsea, Smartgen, ComAp brand controller. | ||
