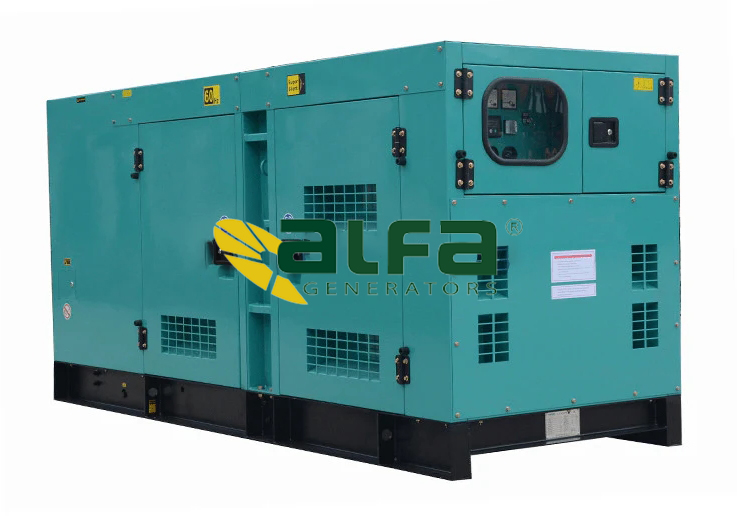

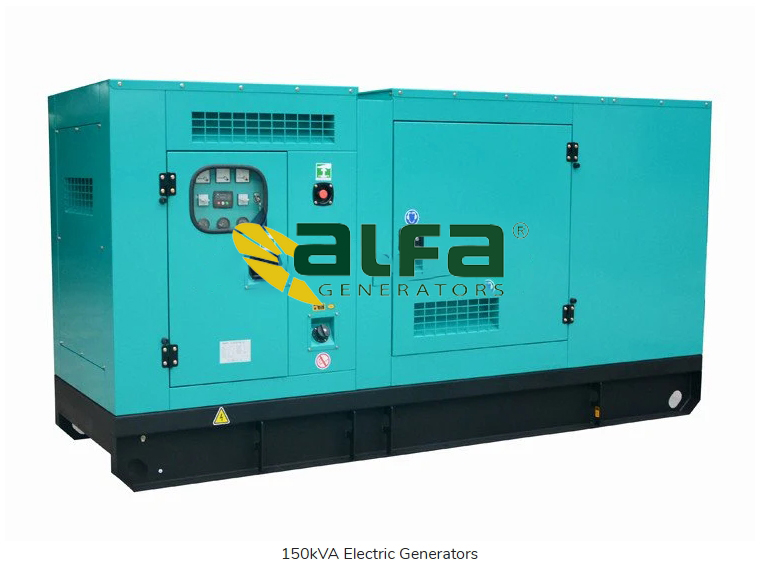

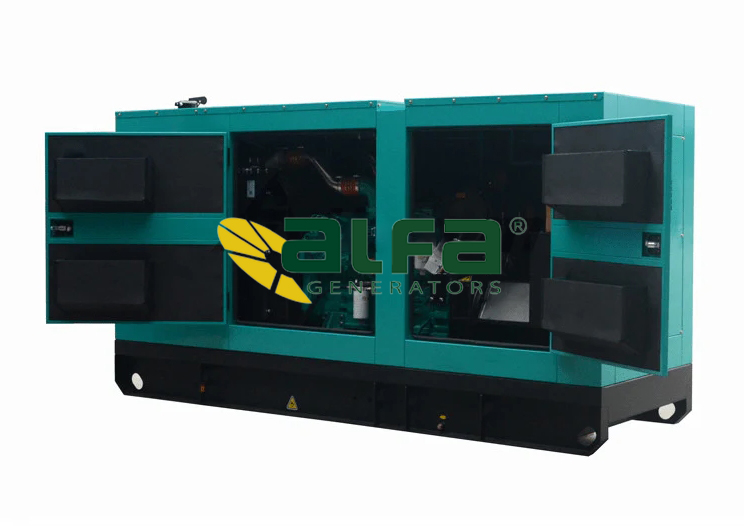

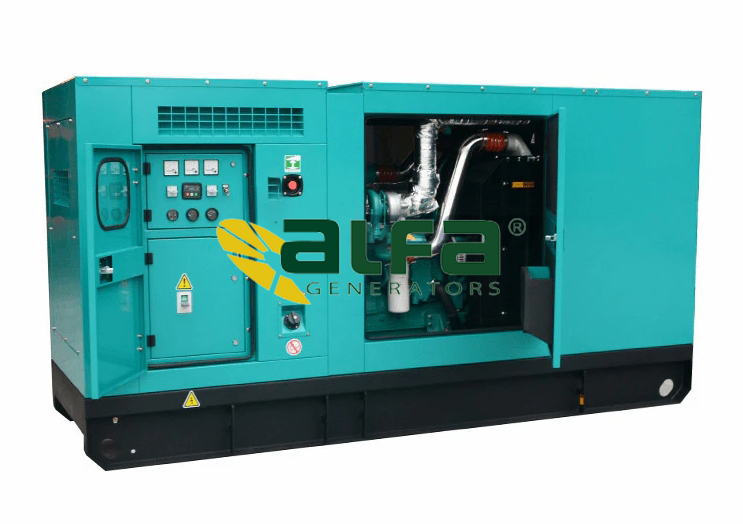

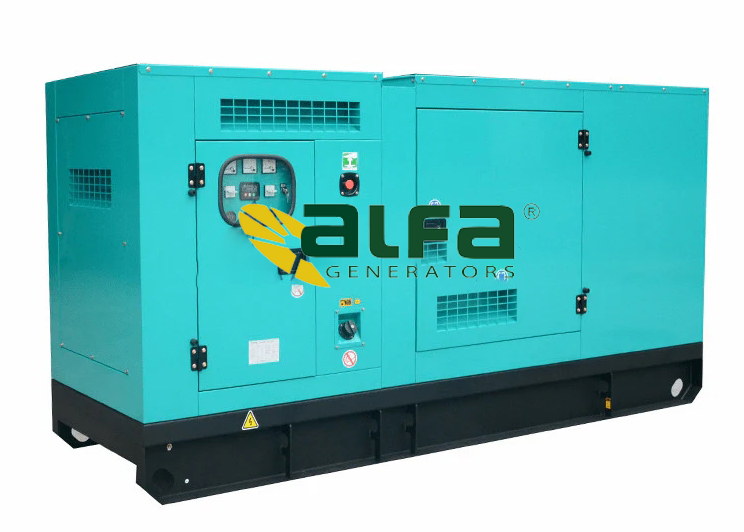

Perkins A-P165H 150kVA 60Hz
Diesel Generator
| Коротка інформація | |
|---|---|
| Виробник | Alfa Generators |
| Модель | A-P165H |
| Сертифікати | ISO9001, CE, SASO, SONCAP, ISO8528:5 |
Electric Generators 150kVA 60Hz with Perkins Diesel Engine
- Electric Generator standby output 165kVA;
- Electric Generators prime output 150kVA;
- Rate frequency at 60Hz;
- Use the Perkins diesel engine 1106A-70TG1;
- Couple with Stamford alternator model UCI 274 E;
- Choose the most famous Deepsea brand DSE7320 controller for automatic start / stop control panel.
- Smartgen brand model BAC60A Automatic Battery Charger;
- Two of 100A free maintenance battery for starting system;
- 200Litres base frame fuel tank for the generator industrial.
- Soundproof and weatherproof canopy for the Perkins industrial generator.
- ATS, Parallel Panel, Distribution Panel for optional.
Specification of 120kW Electric Generators:
| Generator Set Specification | |||||||
| Model | A-P165H | ||||||
| Max. Power | kVA | 165 | |||||
| kW | 132 | ||||||
| Rate Power | kVA | 150 | |||||
| kW | 120 | ||||||
| Frequency | Hz | 50 | |||||
| Rate Voltage | V | 400/230 | |||||
| Rate Current | A | 216.5 | |||||
| Dimension For Open-type Genset | mm | 2450 X 800 X 1400 | |||||
| Weight For Open-type Genset | kg | 1090 | |||||
| Dimension For Soundproof Genset | mm | 3100 X 1080 X 1600 | |||||
| Weight For Soundproof Generator | kg | 1500 | |||||
Engine Specification:
| Engine Specification | ||
|---|---|---|
| Engine Manufacturer | Perkins | |
| Engine Brand | Perkins | |
| Engine Model | 1106A-70TG1 | |
| No. of Cylinder | 6 Cylinder in line | |
| Aspiration | Turbocharged and Air to Air Aftercooled | |
| Governor | Mechanical | |
| Engine Max. Output Power | kW | 149 |
| Displacement | L | 7.01 |
| Starting Voltage | V | 24 |
| Bore | mm | 105 |
| Stroke | mm | 135 |
| Lubrication Oil Capacity | L | 16.5 |

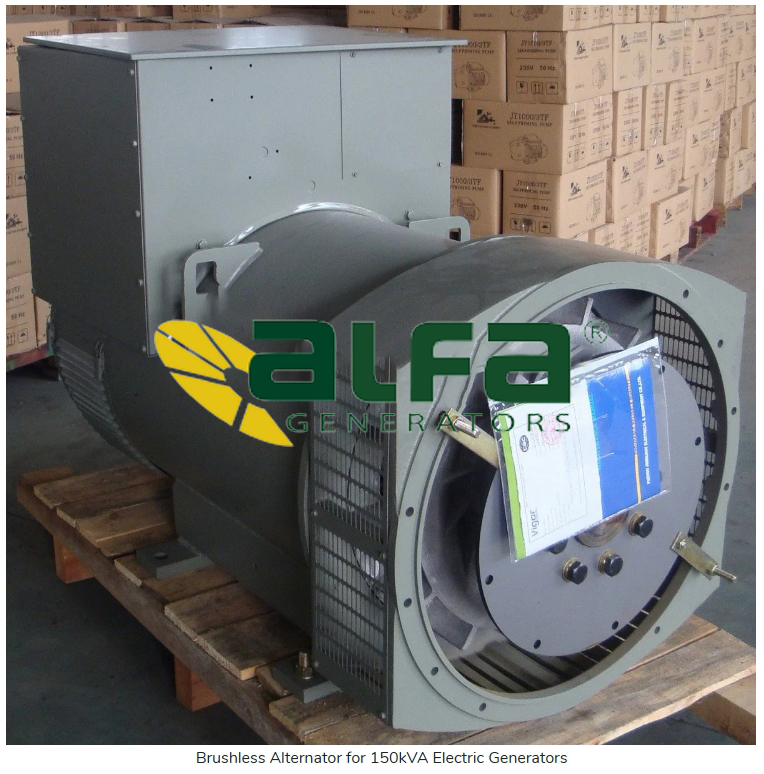

Alternator Specification:
| Alternator Manufacturer | Cummins Generator Technologies | ||||||
| Alternator Brand | Stamford | ||||||
| Model | UCI 274 E | ||||||
| Rate Output | kVA | 178 | |||||
| Rate Frequency | Hz | 50Hz | |||||
| Altitude | M | ≤1000 | |||||
| Insulation | Class H | ||||||
| Voltage Regulation | AVR Model SX480 | ||||||
| Protection Grade | IP23 | ||||||
| Alternator for optional | Leroy Somer, Marathon, Mecc Alte and Hosem Brushless alternator for optional |
||||||
Control Panel Specification:
| Controller Brand | Deepsea | |
| Controller Model | DSE7320 | |
| Breaker Brand | Delixi | |
| Breaker Capacity (A) | 250A | |
| Battery Charger | Supply | |
| Emergency Stop Button | Supply | |
| Automatic Mains Fail (AMF) | Supply | |
| The control panel supply the full protection with Alarm and Shutdown of the diesel generator include High Temp, Low Oil Pressure, Over / Under Speed, Over Load, Start / Stop Fail, Under / Over Voltage etc. | ||
| Optional controller: Each model of Deepsea, Smartgen, ComAp brand controller. | ||
Supply Range of Diesel Generator:
- Use the Stamford alternator, Leroy Somer alternator, Marathon alternator, Mecc Alte alternator, or Hosem brand brushless alternator for client choices.
- Automatic control panel with Deepsea brand controller, ComAp brand controller, or Smartgen brand controller with AMF monitor.
- Denyo design, CAT design, or soundproof canopy for optional.
- The voltage of the electric generator ranges from A.C. 110V to 690V to meet all the clients' requirements.
- All electric generators come with a free maintenance battery for the starting system.
- Noise level is 70-75dBA for soundproof diesel generators, and super silent generators are available with a noise level of 65dBA.
