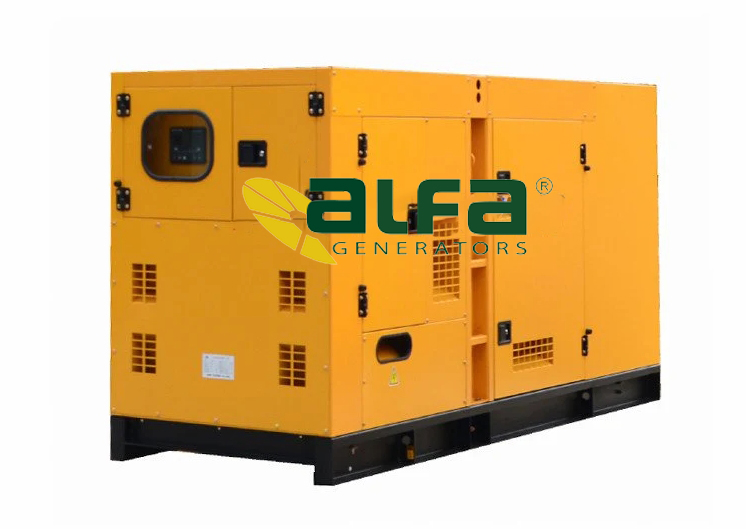

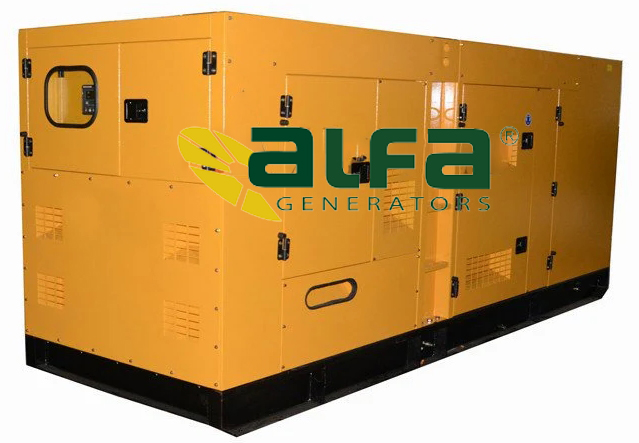

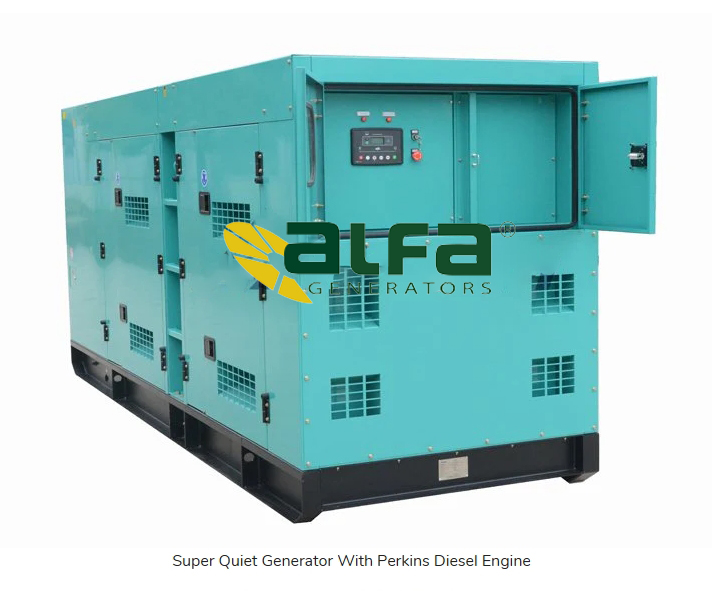

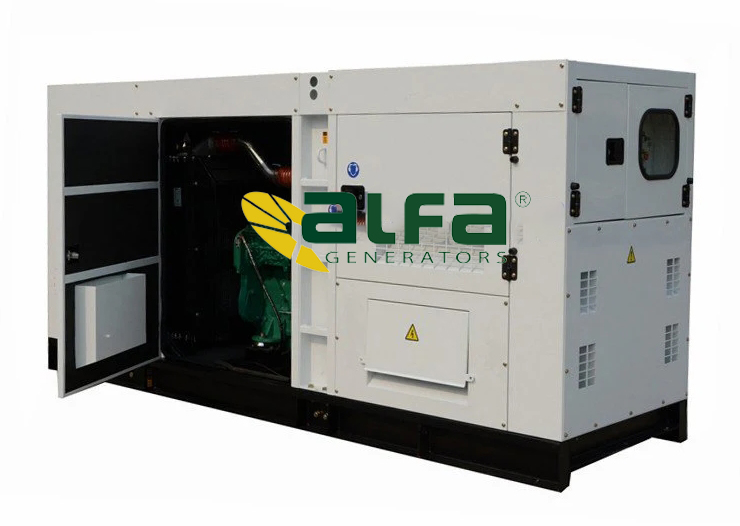

Perkins A-P165 150kVA Super Quiet Generator
| Коротка інформація | |
|---|---|
| Виробник | Alfa Generators |
| Модель | A-P165 |
| Сертифікати | ISO9001, CE, SASO, SONCAP, ISO8528:5 |
Super Quiet Generator Rate Output 150kVA / 120kW, Standby Output 165kVA / 132kW
The Silent diesel generators with Perkins diesel engine model 1106A-70TAG2 and Leroy Somer alternator model TAL-A44-J produced by Emerson Electric Co., rate output at 150kVA / 120kW, standby output at 165kVA / 132kW with frequency at 50Hz, rate voltage A.C. 400/230V. The diesel generator with Deepsea model DSE6020 controller and Delixi brand 250A breaker. Noise level of the super quiet generator at 70dBA at 7 meters.
Specification of the Super Quiet Generator:
| Generator Set Specification | |||||||
| Model | A-P165 | ||||||
| Max. Power | kVA | 165 | |||||
| kW | 132 | ||||||
| Rate Power | kVA | 150 | |||||
| kW | 120 | ||||||
| Frequency | Hz | 50 | |||||
| Rate Voltage | V | 400/230 | |||||
| Rate Current | A | 216.5 | |||||
| Dimension For Open-type Genset | mm | 2450 X 800 X 1400 | |||||
| Weight For Open-type Genset | kg | 1590 | |||||

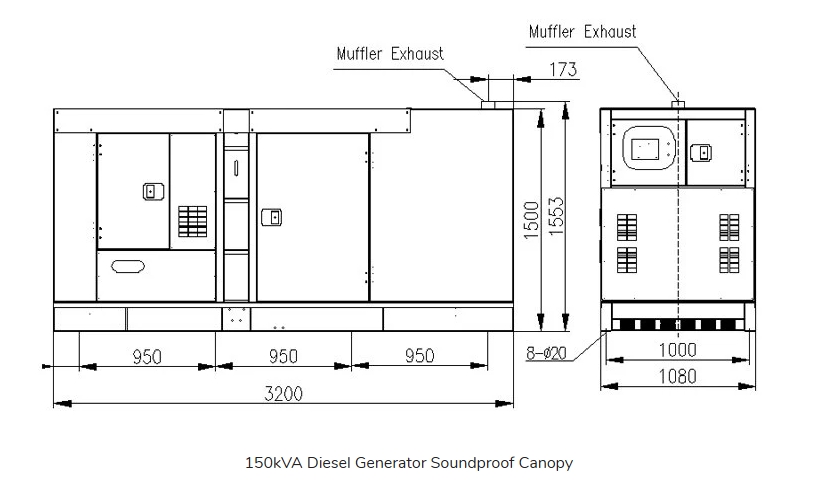

| Dimension For Soundproof Genset | mm | 3200 X 1080 X 1500 | |||||
| Weight For Soundproof Generator | kg | 2090 | |||||
Engine Specification:
| Engine Specification | ||
|---|---|---|
| Engine Manufacturer | Perkins | |
| Engine Brand | Perkins | |
| Engine Model | 1106A-70TAG2 | |
| No. of Cylinder | 6 Cylinder in line | |
| Aspiration | Turbocharged and Air to Air Aftercooled | |
| Governor | Electric | |
| Engine Max. Output Power | kW | 153.6 |
| Displacement | L | 7.01 |
| Starting Voltage | V | 12 |
| Bore | mm | 105 |
| Stroke | mm | 135 |
| Lubrication Oil Capacity | L | 16.5 |
Alternator Specification:
| Alternator Manufacturer | Emerson Electric Co. | ||||||
| Alternator Brand | Leroy Somer | ||||||
| Model | TAL-A44-J | ||||||
| Rate Output | kVA | 160 | |||||
| Rate Frequency | Hz | 50Hz | |||||
| Altitude | M | ≤1000 | |||||
| Insulation | Class H | ||||||
| Voltage Regulation | AVR | ||||||
| Protection Grade | IP23 | ||||||
| Alternator for optional | Stamford, Marathon, Mecc Alte and Hosem Brushless alternator for optional |
||||||

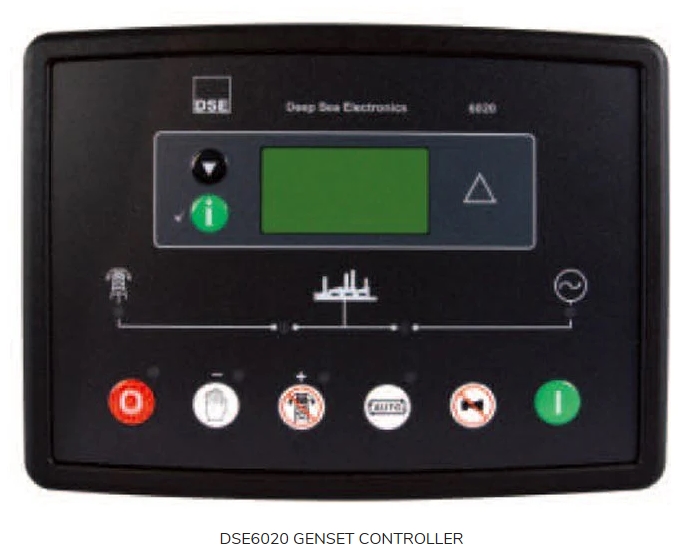

Control Panel Specification:
| Controller Brand | Deepsea | |
| Controller Model | DSE6020 | |
| Breaker Brand | Delixi | |
| Breaker Capacity (A) | 250A | |
| Battery Charger | Supply | |
| Emergency Stop Button | Supply | |
| Automatic Mains Fail (AMF) | Supply | |
| The control panel supply the full protection with Alarm and Shutdown of the diesel generator include High Temp, Low Oil Pressure, Over / Under Speed, Over Load, Start / Stop Fail, Under / Over Voltage etc. | ||
| Optional controller: Each model of Deepsea, Smartgen, ComAp brand controller. | ||
The generating sets details:
- The generation sets with 12 hours base frame fuel tank. Enough for the diesel generator to continue running for normally users.
- One hour overload with 10% of prime output each 12 hours.
- Perkins engine is one of the most popular diesel engines for generating sets, the users are easy to get the spare parts in each country in the world.
- Each generation set with two of DC 12V free maintenance batteries, battery connection cable and rack.
- Battery charge is supplied with Smartgen brand model BAC06A with charging current 3A at 24V, and 6A at 12V.
- Design with the lift hook for the super quiet generator in the base frame and soundproof canopy.
- Supply the ATS, Synchronizing Panel, Distribution Panel, Water Heater, and Daily Fuel Tank for users' optional.
