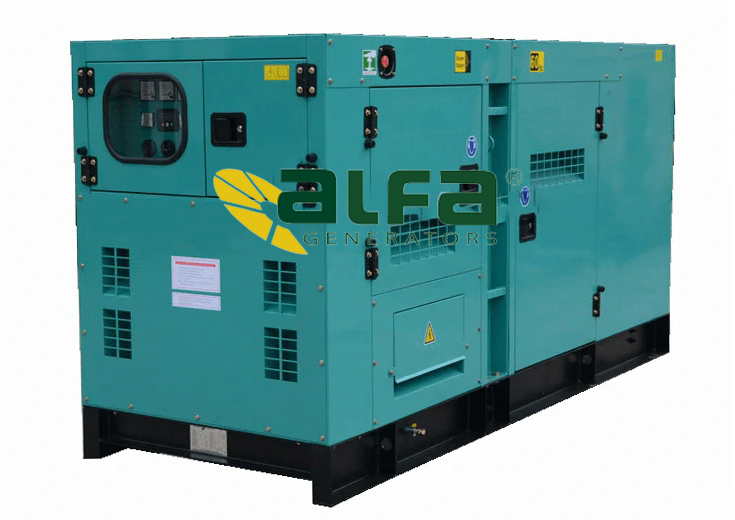

Perkins A-P150 150kVA Standby Diesel Generator
| Коротка інформація | |
|---|---|
| Виробник | Alfa Generators |
| Модель | A-P150 |
| Сертифікати | ISO9001, CE, SASO, SONCAP, ISO8528:5 |

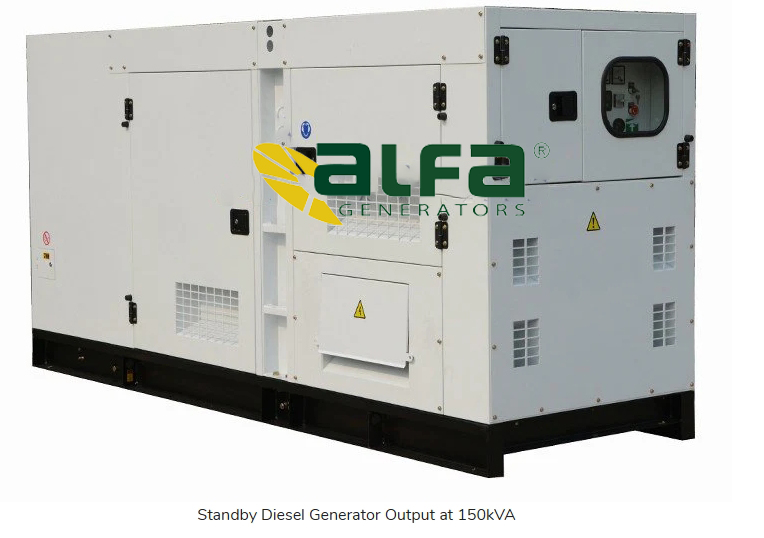

Standby Diesel Generator Output 150kVA Rate Voltage 400/230V for Factory
The supplied standby diesel generator with frequency at 50Hz or 60Hz for users' optional, and the voltage can be customized made from A.C. 110V to 690V, depend on clients' requirements.

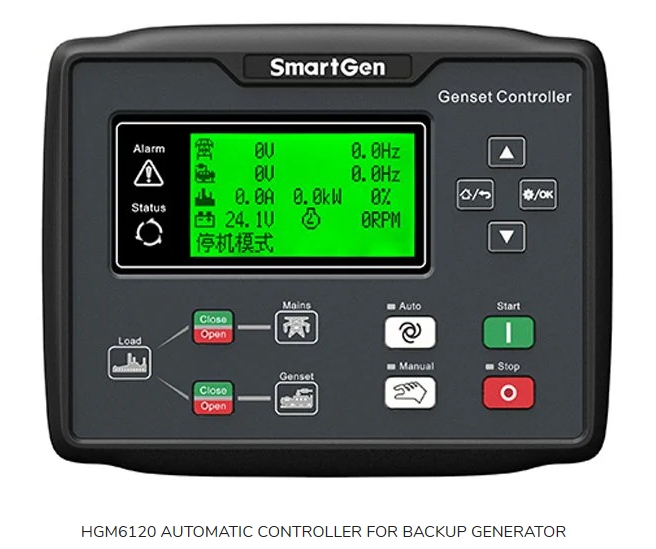

The standby diesel generator use the Smartgen brand HGM6120 controller with AMF function, it can monitor the mains voltage to automatic the standby generators start and stop.
We supply the parallel panel, distribution panel, ATS, daily fuel tank, coolant heater, oil heater for client optional.
Supply the Open-type generator, Containerized generator and mobile diesel generator for client optional. The containerized generator and mobile diesel generator with weatherproof, it no problem for outdoor use.
The standby diesel generator supplied with free maintenance battery.
Specification of Standby Generators:
| Generator Set Specification | |||||||
| Model | A-P150 | ||||||
| Max. Power | kVA | 150 | |||||
| kW | 120 | ||||||
| Rate Power | kVA | 135 | |||||
| kW | 108 | ||||||
| Frequency | Hz | 50 | |||||
| Rate Voltage | V | 400/230 | |||||
| Rate Current | A | 194.9 | |||||
| Dimension For Open-type Genset | mm | 2450 X 800 X 1400 | |||||
| Weight For Open-type Genset | kg | 1590 | |||||

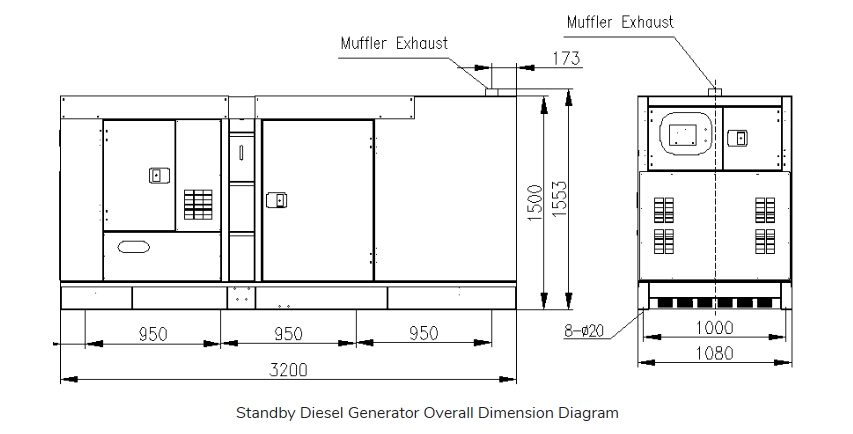

| Dimension For Soundproof Genset | mm | 3100X 1080 X 1600 | |||||
| Weight For Soundproof Generator | kg | 2090 | |||||
Engine Specification:
| Engine Specification | ||
|---|---|---|
| Engine Manufacturer | Perkins | |
| Engine Brand | Perkins | |
| Engine Model | 1106A-70TG1 | |
| No. of Cylinder | 6 Cylinder in line | |
| Aspiration | Turbocharged | |
| Governor | Electric | |
| Engine Max. Output Power | kW | 136.9 |
| Displacement | L | 7.01 |
| Starting Voltage | V | 12 |
| Bore | mm | 105 |
| Stroke | mm | 135 |
| Lubrication Oil Capacity | L | 16.5 |

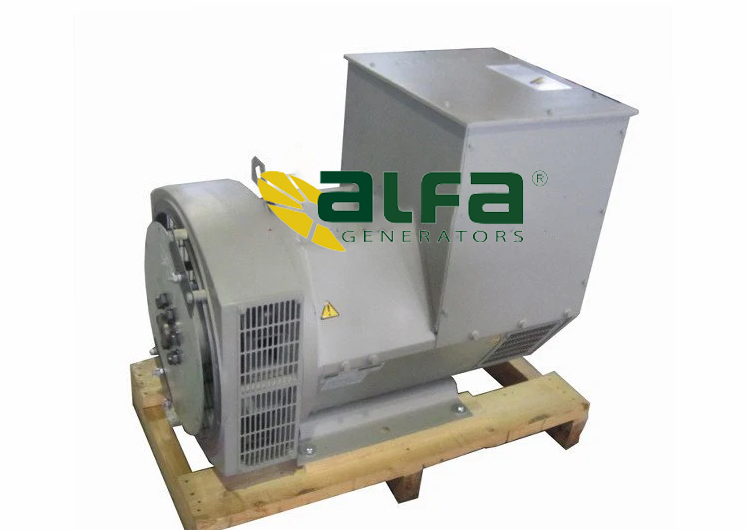

Alternator Specification:
| Alternator Manufacturer | Cummins Generator Technologies | ||||||
| Alternator Brand | Stamford | ||||||
| Model | UCI 274 E | ||||||
| Rate Output | kVA | 140 | |||||
| Rate Frequency | Hz | 50Hz | |||||
| Altitude | M | ≤1000 | |||||
| Insulation | Class H | ||||||
| Voltage Regulation | AVR Model SX480 | ||||||
| Protection Grade | IP23 | ||||||
| Alternator for optional | Leroy Somer, Marathon, Mecc Alte and Hosem Brushless alternator for optional |
||||||

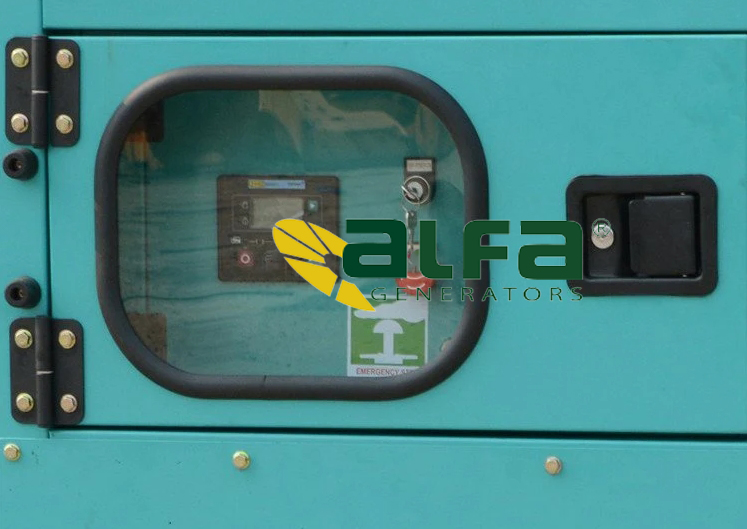

Control Panel Specification:
| Controller Brand | Smartgen | |
| Controller Model | HGM6120N | |
| Breaker Brand | Delixi | |
| Breaker Capacity (A) | 250A | |
| Battery Charger | Supply | |
| Emergency Stop Button | Supply | |
| Automatic Mains Fail (AMF) | Supply | |
| The control panel supply the full protection with Alarm and Shutdown of the diesel generator include High Temp, Low Oil Pressure, Over / Under Speed, Over Load, Start / Stop Fail, Under / Over Voltage etc. | ||
| Optional controller: Each model of Deepsea, Smartgen, ComAp brand controller. | ||
