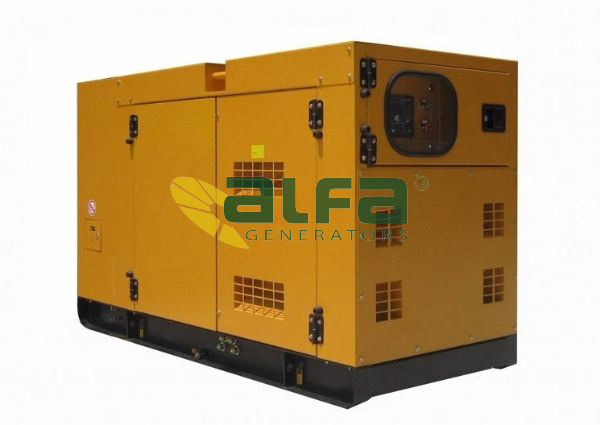

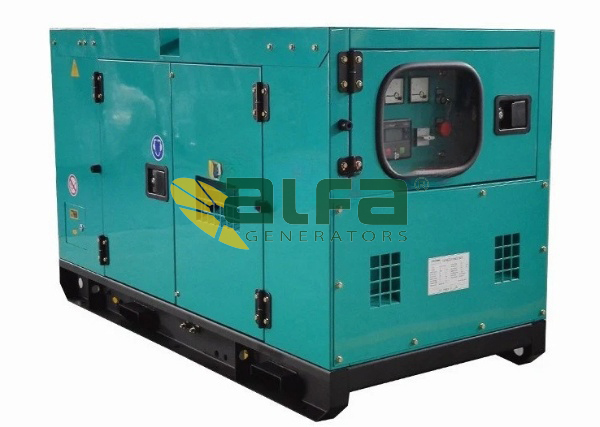

Perkins A-P14 12.5kVA Low Noise Diesel Generator
| Коротка інформація | |
|---|---|
| Виробник | Alfa Generators |
| Модель | A-P14 |
| Сертифікати | ISO9001, CE, SASO, SONCAP, ISO8528:5 |

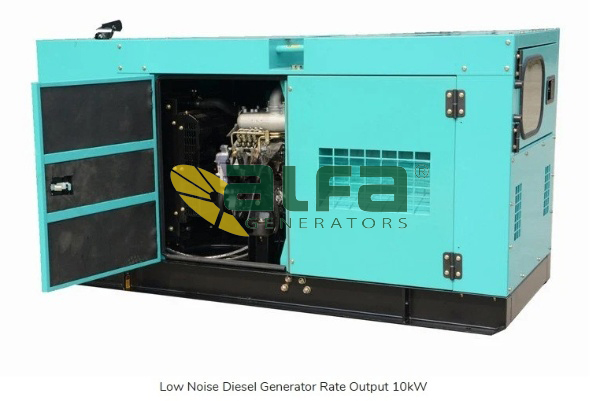

Low Noise Diesel Generator with Perkins Diesel Engine Model 403A-15G1 Rate Output 10kW/12.5kVA
The Low noise diesel generator powered by Perkins diesel engine model 403A-15G1 and Stamford alternator model PI 044 F, rate output 12.5kVA, standby output 14kVA at 50Hz, 1800R.P.M.
The Perkins diesel engine 401A-15G1 is the naturally aspirated type diesel engine, it has the advantage of long life working time, and Perkins diesel engine is one of the most famous brand diesel engine for diesel generator in the world, the users can easy to get the maintenance spare parts, and it can easy to repair the diesel engine in each country.

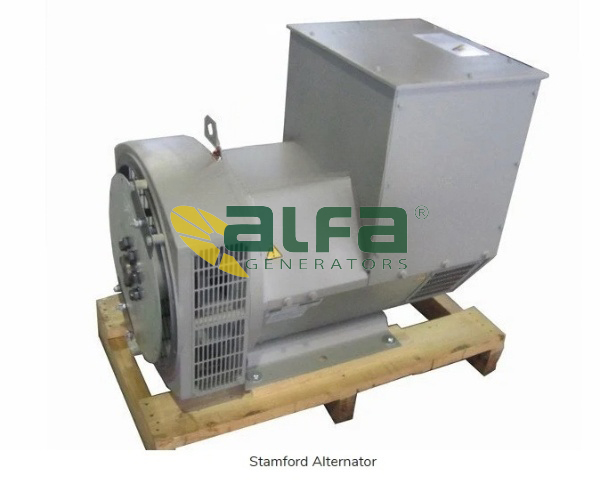

TThe low noise diesel generator uses one of the most famous alternator brand, the Stamford alternator model PI044F made by Cummins Generator Technologies. The alternator with automatic voltage regulation.
We can make the super silent diesel generator with noise level at 65dBA at 7 Meters.
Specification of the 12.5kVA Soundproof Diesel Generator:
| Generator Set Specification | |||||||
| Model | A-P14 | ||||||
| Max. Power | kVA | 14 | |||||
| kW | 11 | ||||||
| Rate Power | kVA | 12.5 | |||||
| kW | 10 | ||||||
| Frequency | Hz | 50 | |||||
| Rate Voltage | V | 400/230 | |||||
| Rate Current | A | 18.0 | |||||
| Dimension For Open-type Genset | mm | 1150 X 550 X 1200 | |||||
| Weight For Open-type Genset | kg | 423 | |||||

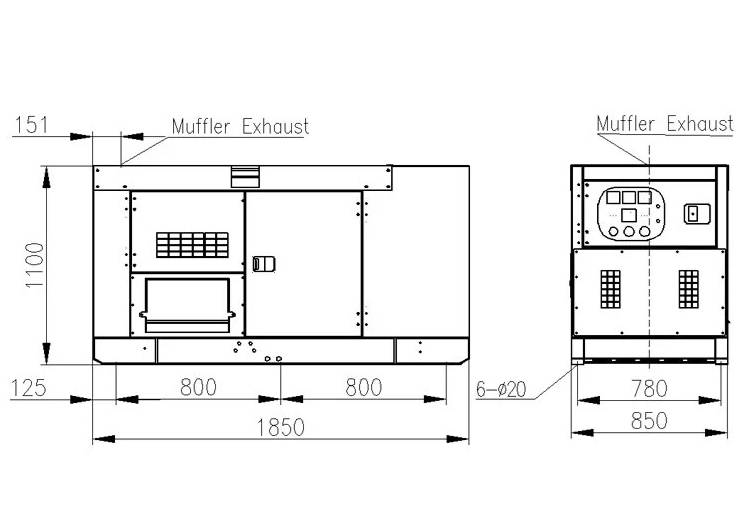

| Dimension For Soundproof Genset | mm | 1850 X 850 X 1100 | |||||
| Weight For Soundproof Generator | kg | 603 | |||||
Engine Specification:
| Engine Specification | ||
|---|---|---|
| Engine Manufacturer | Perkins | |
| Engine Brand | Perkins | |
| Engine Model | 403A-15G | |
| No. of Cylinder | 3 Cylinder in line | |
| Aspiration | Naturally Aspirated | |
| Governor | Mech. | |
| Engine Max. Output Power | kW | 13.5 |
| Displacement | L | 1.496 |
| Starting Voltage | V | 12 |
| Bore | mm | 84 |
| Stroke | mm | 90 |
| Lubrication Oil Capacity | L | 6 |
Alternator Specification:
| Alternator Manufacturer | Cummins Generator Technologies | ||||||
| Alternator Brand | Stamford | ||||||
| Model | PI 044F | ||||||
| Rate Output | kVA | 12 | |||||
| Rate Frequency | Hz | 50Hz | |||||
| Altitude | M | ≤1000 | |||||
| Insulation | Class H | ||||||
| Voltage Regulation | AVR Model SX480 | ||||||
| Protection Grade | IP23 | ||||||
| Alternator for optional | Leroy Somer, Marathon, Mecc Alte and Hosem Brushless alternator for optional |
||||||
Control Panel Specification:
| Controller Brand | Deepsea | |
| Controller Model | DSE6020 | |
| Breaker Brand | Delixi | |
| Breaker Capacity (A) | 32A | |
| Battery Charger | Supply | |
| Emergency Stop Button | Supply | |
| Automatic Mains Fail (AMF) | Supply | |
| The control panel supply the full protection with Alarm and Shutdown of the diesel generator include High Temp, Low Oil Pressure, Over / Under Speed, Over Load, Start / Stop Fail, Under / Over Voltage etc. | ||
| Optional controller: Each model of Deepsea, Smartgen, ComAp brand controller. | ||

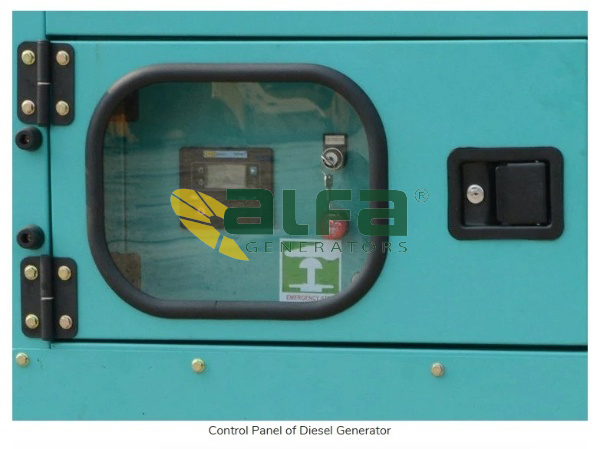

Chose the Deepsea controller model DSE6020 for the soundproof generator with full protection of diesel generator. The controller will monitor the mains power for control the silent generator automatic start and stop.
The low noise diesel generator with the base frame fuel tank for diesel generator continues running for more than 8hours. Can supply the double wall fuel tank for clients' optional.
