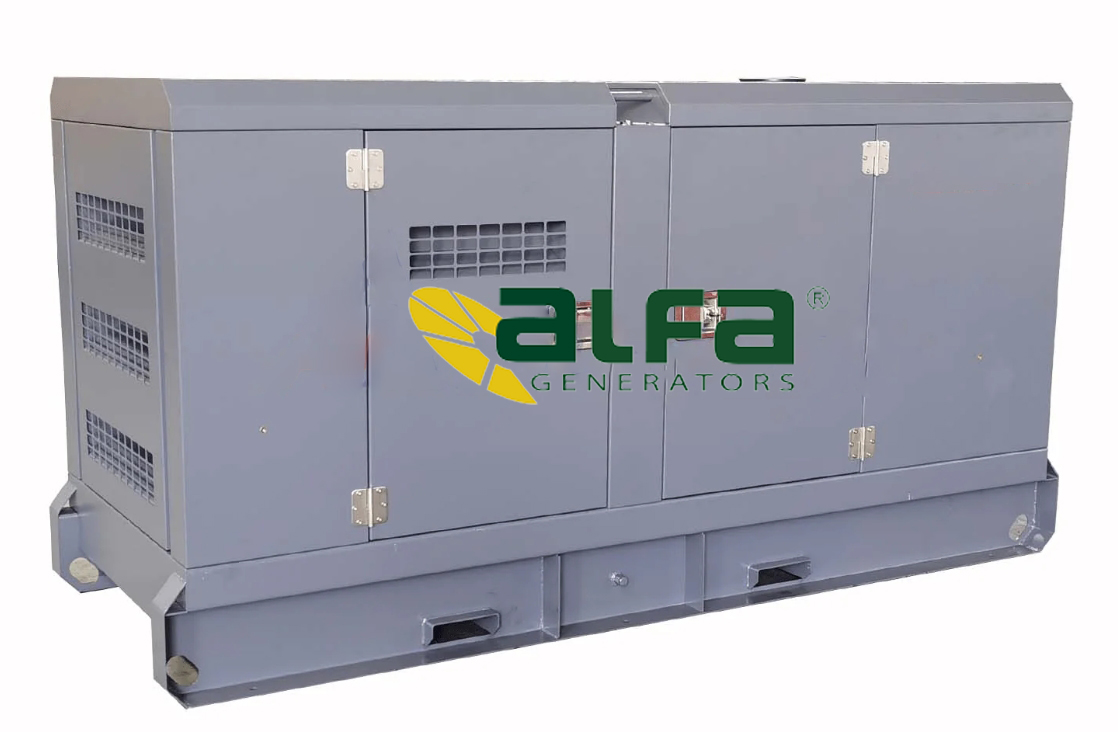

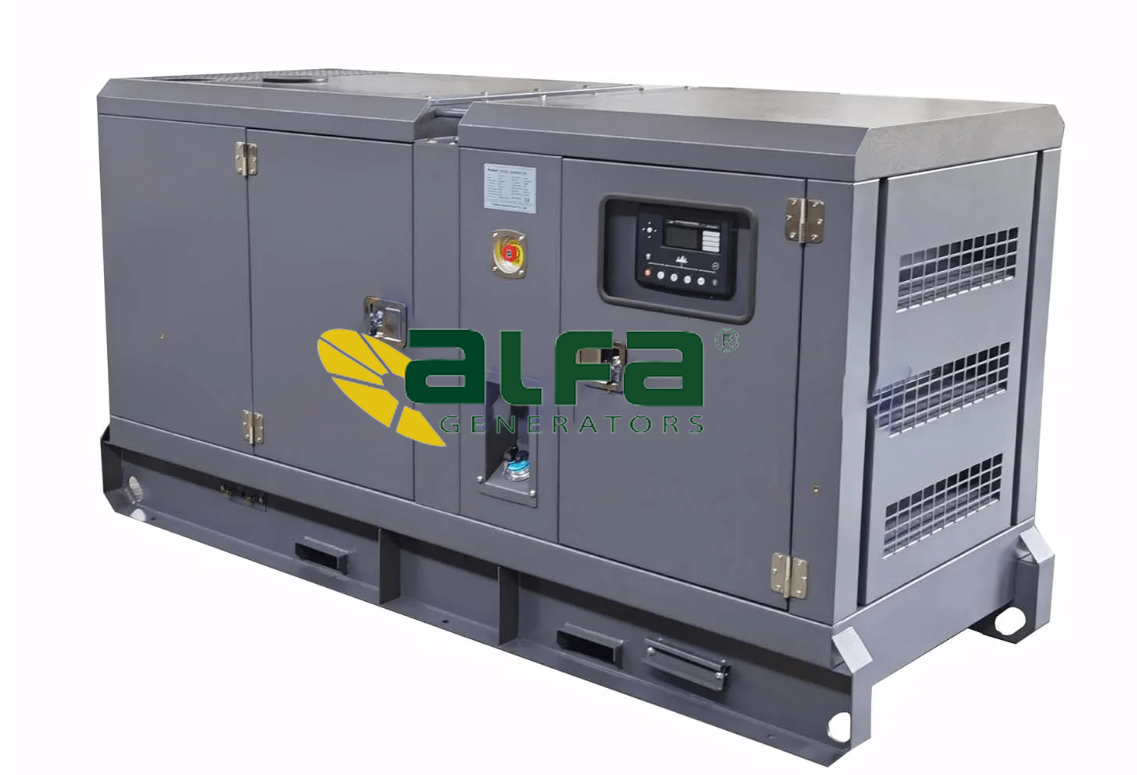

100kVA Perkins Diesel Generator
60Hz with 1104A-44TG2
| Коротка інформація | |
|---|---|
| Виробник | Alfa Generators |
| Модель | A-P100HS |
| Сертифікати | ISO9001, CE, SASO, SONCAP, ISO8528:5 |

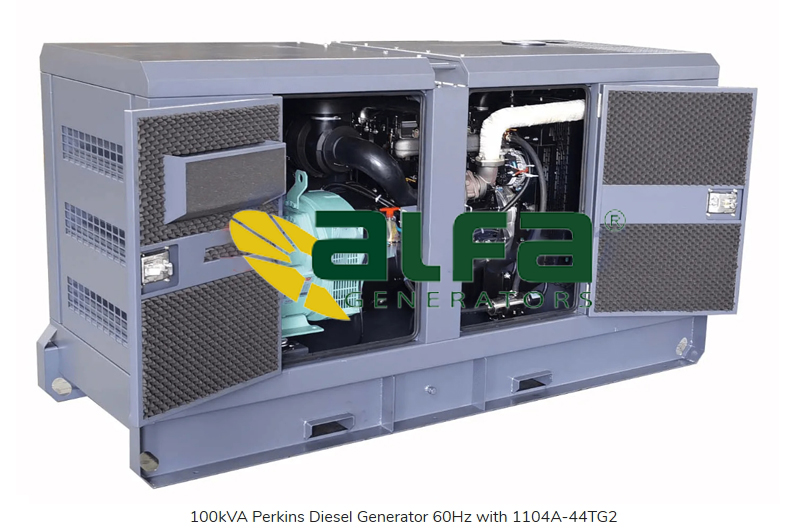

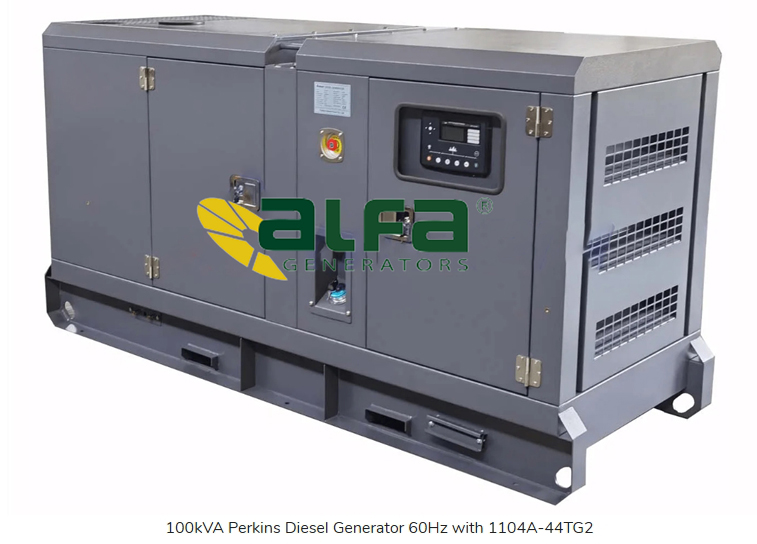

100kVA Perkins Diesel Generator 60Hz with 1104A-44TG2
Supply Range of 100kVA Perkins Diesel Generator:
- Standby output 100kVA, prime output 90kVA with 60Hz 220/127V, three phase four wires.
- Perkins diesel engine model 1104A-44GT2, rate output 90.2kW at 1800R.P.M.
- Stamford alternator model UCI 224 G, rated output 97.5kVA, standby output 110kVA.
- Deepsea brand controller model DSE7320MKII for automatic start / stop.
- 150 Litres base frame tank for 100kVA Perkins diesel generator continue running for more than 8 hours.
- Soundproof design radiator for the Perkins generator set.
- Flexible pipes, flange, exhaust silencer for the Perkins diesel generator.
- Supply DC12V free maintenance battery capacity at 80A with cable and racks.
- Smartgen brand BAC60A automatic battery charger.
- 250A breaker with Delixi brand.
- Complete manual for the 100kVA Perkins diesel generator, Perkins diesel engine, Leroy Somer alternator, controller.
- Wiring Diagram and Circuit Diagram for the Perkins diesel generator.
- Soundproof and weatherproof canopy for the 100kVA 60Hz Perkins diesel generator.
- Optional Parts included ATS (automatic transfer switch), Trailer, Parallel Panel, Engine Coolant Heater, Engine Oil Heater, etc.
- Have the Leroy Somer alternator, Marathon alternator, Mecc Alte alternator and Hosem brushless alternator for optional.
- Have the Deepsea controller or Smartgen controller for optional.
Details Specification of the 100kVA Perkins Diesel Generator:
| Generator Set Specification | |||||||
| Model | A-P100H | ||||||
| Max. Power | kVA | 100 | |||||
| kW | 80 | ||||||
| Rate Power | kVA | 90 | |||||
| kW | 72 | ||||||
| Frequency | Hz | 60 | |||||
| Rate Voltage | V | 220/127 | |||||
| Rate Current | A | 236.2 | |||||
| Dimension For Open-type Genset | mm | 1860 X 750 X 1200 | |||||
| Weight For Open-type Genset | kg | 978 | |||||
| Dimension For Soundproof Genset | mm | 2500 X 1080 X 1500 | |||||
| Weight For Soundproof Generator | kg | 1375 | |||||
Engine Specification of 100kVA Perkins Diesel Generator:
| Engine Specification | ||
|---|---|---|
| Engine Manufacturer | Perkins | |
| Engine Brand | Perkins | |
| Engine Model | 1104A-44TG2 | |
| No. of Cylinder | 4 Cylinder in line | |
| Aspiration | Turbocharged | |
| Governor | Mechanical | |
| Engine Max. Output Power | kW | 90.2 |
| Displacement | L | 4.4 |
| Starting Voltage | V | 12 |
| Bore | mm | 105 |
| Stroke | mm | 127 |
| Lubrication Oil Capacity | L | 7 |
Alternator Specification of the 100kVA Perkins Diesel Generator:
| Alternator Manufacturer | Cummins Generator Technologies | ||||||
| Alternator Brand | PI 044F | ||||||
| Model | UCI 224 G | ||||||
| Rate Output | kVA | 97 | |||||
| Rate Frequency | Hz | 60Hz | |||||
| Altitude | M | ≤1000 | |||||
| Insulation | Class H | ||||||
| Voltage Regulation | AVR Model SX460 | ||||||
| Protection Grade | IP23 | ||||||
| Alternator for optional | Leroy Somer, Marathon, Mecc Alte and Hosem Brushless alternator for optional |
||||||
Control Panel Specification:
| Controller Brand | Deepsea | |
| Controller Model | DSE7320 | |
| Breaker Brand | Delixi | |
| Breaker Capacity (A) | 80A | |
| Battery Charger | Supply | |
| Emergency Stop Button | Supply | |
| Automatic Mains Fail (AMF) | Supply | |
| The control panel supply the full protection with Alarm and Shutdown of the diesel generator include High Temp, Low Oil Pressure, Over / Under Speed, Over Load, Start / Stop Fail, Under / Over Voltage etc. | ||
| Optional controller: Each model of Deepsea, Smartgen, ComAp brand controller. | ||
