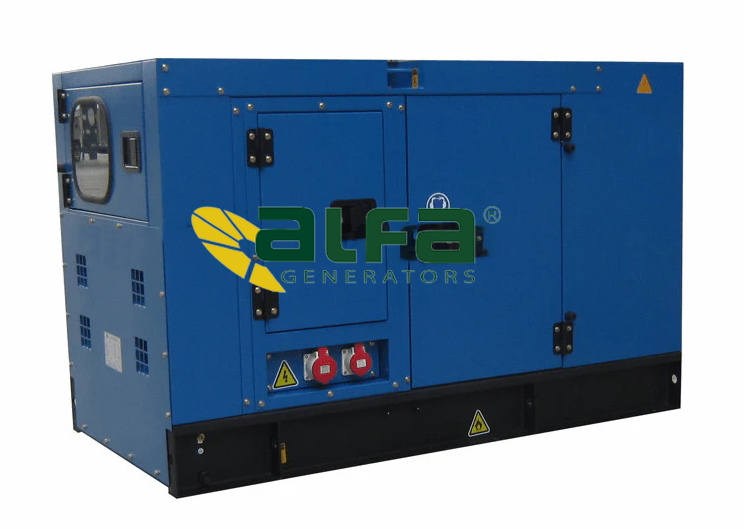

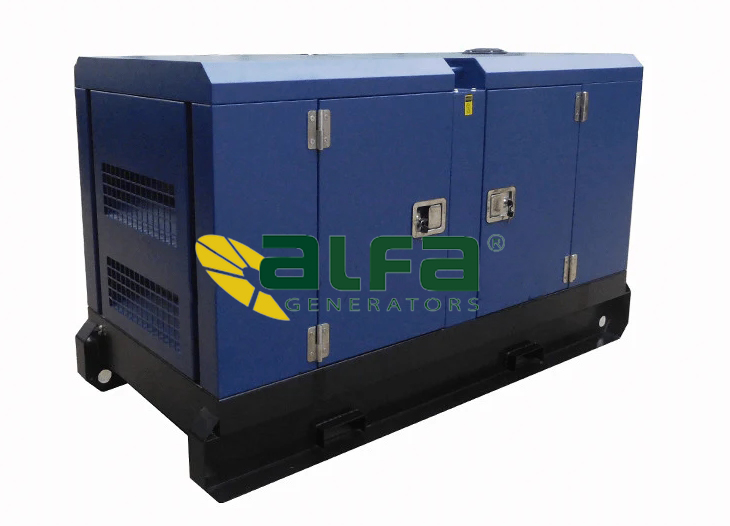

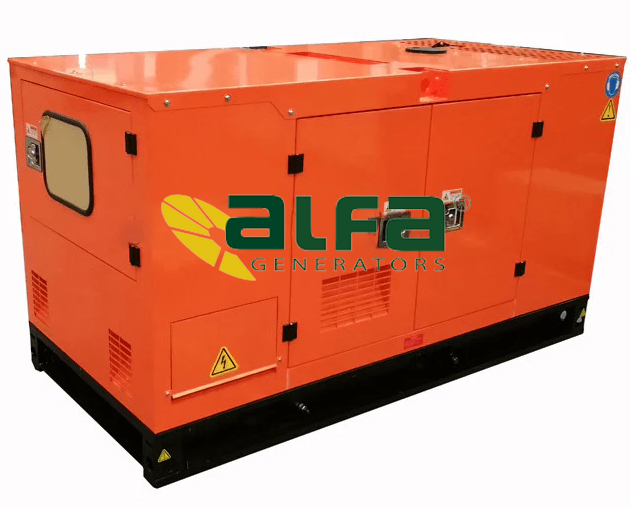

Perkins A-P10 10kVA Diesel Generator
with Engine 403A-11G1 For House
| Коротка інформація | |
|---|---|
| Виробник | Alfa Generators |
| Модель | A-P10 |
| Сертифікати | ISO9001, CE, SASO, SONCAP, ISO8528:5 |

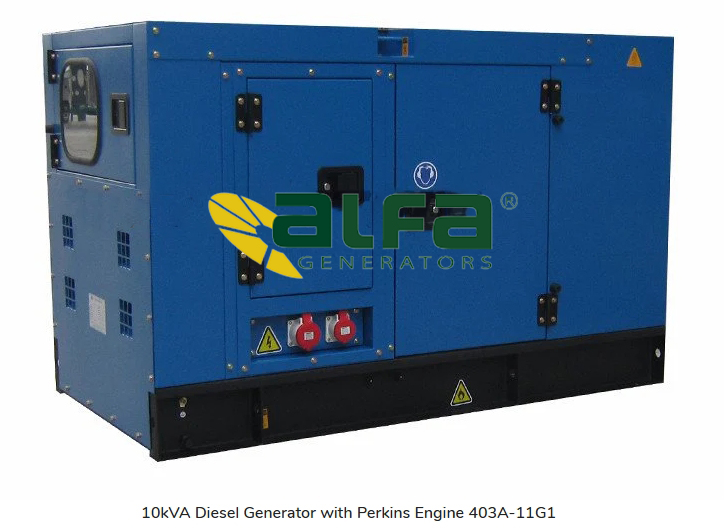

10kVA Diesel Generator with Perkins Engine 403A-11G1 For House:
Supply Range of 10kVA Perkins Diesel Generator:
- Perkins diesel engine model 403A-11G1;
- Leroy Somer alternator model TAL-A40-C;
- ComAp brand controller model Intelligent Nano for automatic start / stop;
- 35Litres base frame tank for 10kVA soundproof generator to continue running for more than 12 hours;
- Soundproof design radiator for the Perkins diesel engine;
- Flexible pipes, flange, exhaust silencer for the 10kVA silent generator;
- Supply DC12V free maintenance battery capacity at 60A with cable and racks;
- Smartgen brand BAC60A automatic battery charger;
- 32A breaker with Delixi brand;
- Complete manual for the 10kVA diesel generator, Perkins diesel engine, Leroy Somer alternator, controller;
- Wiring Diagram and Circuit Diagram for the Perkins diesel generator;

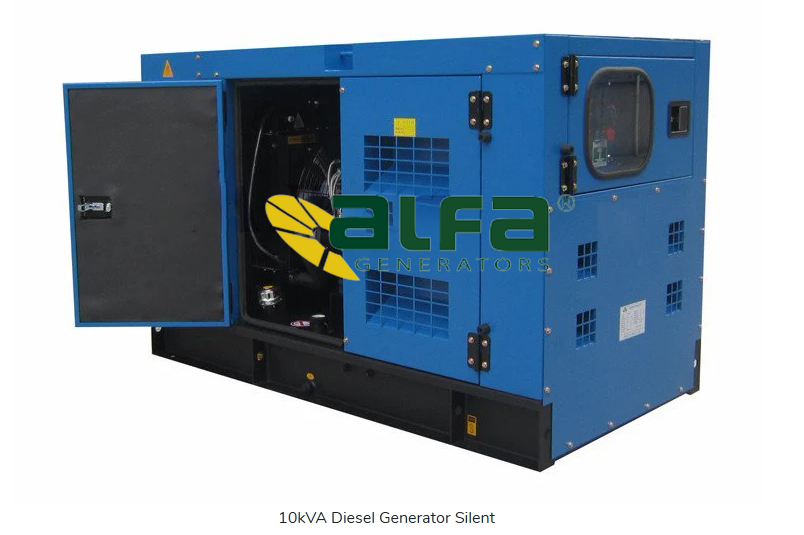

- Soundproof and weatherproof canopy for the 10kVA diesel generator;
- Optional Parts included ATS (automatic transfer switch), Trailer, Parallel Panel, Engine Coolant Heater, Engine Oil Heater, etc.;
- Have the Stamford alternator, Marathon alternator, Mecc Alte alternator, and Hosem brushless alternator for optional;
- Have the Deepsea controller or Smartgen controller for optional.
Specification of 10kVA Perkins Diesel Generator:
| Generator Set Specification | |||||||
| Model | A-P10 | ||||||
| Max. Power | kVA | 10 | |||||
| kW | 8 | ||||||
| Rate Power | kVA | 9 | |||||
| kW | 7.2 | ||||||
| Frequency | Hz | 50 | |||||
| Rate Voltage | V | 400/230 | |||||
| Rate Current | A | 13.0 | |||||
| Dimension For Open-type Genset | mm | 1150 X 550 X 1200 | |||||
| Weight For Open-type Genset | kg | 352 | |||||

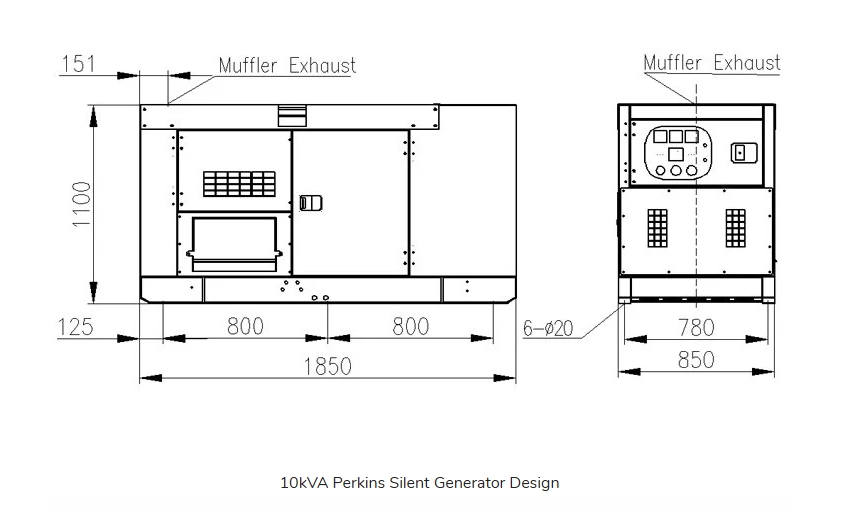

| Dimension For Soundproof Genset | mm | 1850 X 850 X 1100 | |||||
| Weight For Soundproof Generator | kg | 532 | |||||
Engine Specification:
| Engine Specification | ||
|---|---|---|
| Engine Manufacturer | Perkins | |
| Engine Brand | Perkins | |
| Engine Model | 403A-11G | |
| No. of Cylinder | 3 Cylinder in line | |
| Aspiration | Naturally Aspirated | |
| Governor | Mech. | |
| Engine Max. Output Power | kW | 9.5 |
| Displacement | L | 1.131 |
| Starting Voltage | V | 12 |
| Bore | mm | 77 |
| Stroke | mm | 81 |
| Lubrication Oil Capacity | L | 4.4 |
Alternator Specification:
| Alternator Manufacturer | Emerson Electric Co. | ||||||
| Alternator Brand | Leroy Somer | ||||||
| Model | TAL-A40-C | ||||||
| Rate Output | kVA | 10 | |||||
| Rate Frequency | Hz | 50Hz | |||||
| Altitude | M | ≤1000 | |||||
| Insulation | Class H | ||||||
| Voltage Regulation | AVR Model R205A | ||||||
| Protection Grade | IP23 | ||||||
| Alternator for optional | Leroy Somer, Marathon, Mecc Alte and Hosem Brushless alternator for optional |
||||||
Control Panel Specification:
| Controller Brand | ComAp | |
| Controller Model | Intelligent Nano | |
| Breaker Brand | Delixi | |
| Breaker Capacity (A) | 32A | |
| Battery Charger | Supply | |
| Emergency Stop Button | Supply | |
| Automatic Mains Fail (AMF) | Supply | |
| The control panel supply the full protection with Alarm and Shutdown of the diesel generator include High Temp, Low Oil Pressure, Over / Under Speed, Over Load, Start / Stop Fail, Under / Over Voltage etc. | ||
| Optional controller: Each model of Deepsea, Smartgen, ComAp brand controller. | ||
