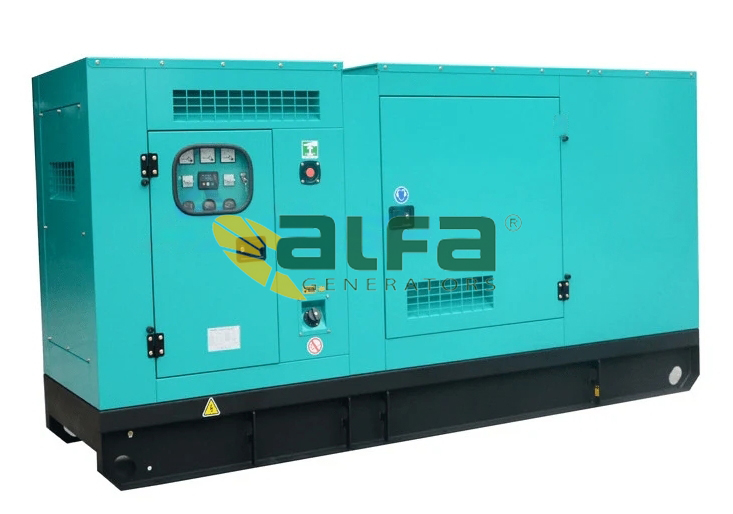

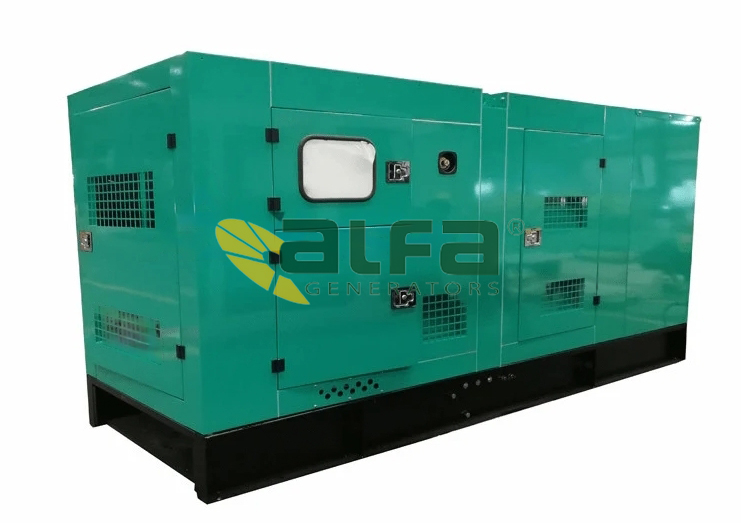

Volvo A-V94 85kVA
Diesel Generator with TAD530GE Engine
| Коротка інформація | |
|---|---|
| Виробник | Alfa Generators |
| Модель | A-V94 |
| Сертифікати | ISO9001, CE, SASO, SONCAP, ISO8528:5 |
Volvo Diesel Generator with TAD530GE Engine Output 85kVA
Supply Volvo diesel generator rated output from 68kW to 550kW with Emission standard at Euro Tier II or Tier III. The Volvo diesel engine is made by Volvo Penta in Sweden.
Supply range of 85kVA Volvo diesel generator:
- Volvo diesel engine TAD530GE with rated output 80kW at 1500 RPM, standby output 89kW at 1500 RPM.
- Stamford alternator UCI 224 G with rated output 85kVA at 50Hz.
- Deepsea DSE7320 controller with automatic start and stop control made in U.K.
- ABB circuit breaker with capacity at 160A.
- Automatic start with DC 24V starting motor.
- Two of 80A free maintenance batteries with battery connection cable and rack.
- Base frame with fuel tank capacity at 125Litres for diesel generator continue running for 8hours at 75% load.
- Soundproof canopy with noise level at 75dBA at 7 meters, outdoor use with waterproof standard.
- Emergency stop function.
- Water cooling diesel engine with radiator and cooling fan.
- Supply domestic muffler for Volvo soundproof generator.
Specification of 85kVA Volvo Industrial Generator
| Volvo Diesel Generator Set Specification | |||||||
| Standby Power (ESP) | 94 | kVA | Alternator Brand | Stamford | |||
| 75 | kW | Alternator Model | UCI 224 G | ||||
| Prime Power (PRP) | 85 | kVA | Controller | Deepsea DSE7320 | |||
| 68 | kW | Measure (L x W x H) --mm | 2900 X 1080 X 1500 | ||||
| Mechanical Structure | Soundproofed | Empty Weight (kg) | 1650 | kg | |||
| Engine Brand | Volvo | Fuel Tank (L) | 125 | L | |||
| Engine Model | TAD530GE | Noise Level for Soundproof | 75 | dB(A) at 7m | |||
| Diesel Generator Ratings | |||||||
| Voltage (V) | Frequency (Hz) | Phase | Standby Amps. (A) | Standby Output | Prime Output | ||
| kVA | kW | kVA | kW | ||||
| 380/220 | 50 | 3 | 142.4 | 94 | 75 | 85 | 68 |
| 400/230 | 50 | 3 | 135.3 | 94 | 75 | 85 | 68 |
| 415/240 | 50 | 3 | 130.4 | 94 | 75 | 85 | 68 |
Volvo Diesel Engine Specification
| Volvo Diesel Engine Specification | |||||||
| Engine Brand | Volvo | ||||||
| Engine Model | TAD530GE | ||||||
| Cylinder Nos. | 4 Cylinder in line | ||||||
| Aspiration | Naturally Aspirated | ||||||
| Cooling Method | Water Cooling | ||||||
| Governor | Mechanical | ||||||
| Engine Max. Output at rate 1500R.P.M. | kWm | 89 | |||||
| BHP | 119 | ||||||
| Displacement | Liters | 4.76 | |||||
| Engine Speed | R.P.M. | 1500 | |||||
| Bore | mm | 108 | |||||
| Stroke | mm | 130 | |||||
| Fuel Consumption at 100% load | Liters / H | 20 | |||||
| Oil Pan Capacity | Liters | 13 | |||||
| Exhaust Gas Temp. at rate output | °C | 610 | |||||
| Exhaust Gas Flow at rate output | m³/min | 16.00 | |||||
Stamford Brushless Alternator Specification
| Stamford Brushless Alternator Specification | |||||||
| Manufacturer | Cummins Generator Technologies | ||||||
| Alternator Brand | Stamford | ||||||
| Model | UCI 224 G | ||||||
| Rate Output | kVA | 85 | |||||
| Rate Frequency | Hz | 50 | |||||
| Altitude | M | ≤1000 | |||||
| Alternator Type | Single bearing, brushless type | ||||||
| Connection Type | Three phase, four wire | ||||||
| Protection Grade | IP23 | ||||||
| Insulation Class | H | ||||||
| Voltage Regulation | Automatic Voltage Regulation (AVR) | ||||||
| Standards | Compliance with GB755, BS5000, NEMA MG1-22, IEC-34, CSA C22-100 and AS1259 Standards. | ||||||
| Alternator for choice | Brand | Leroy Somer | Marathon | Mecc Alte | Hosem | ||
